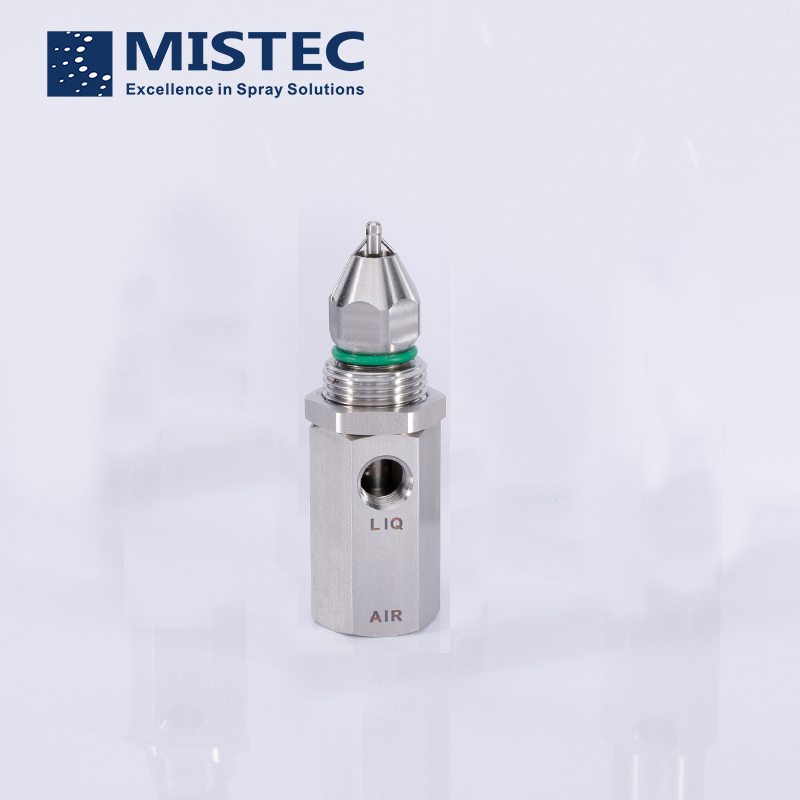

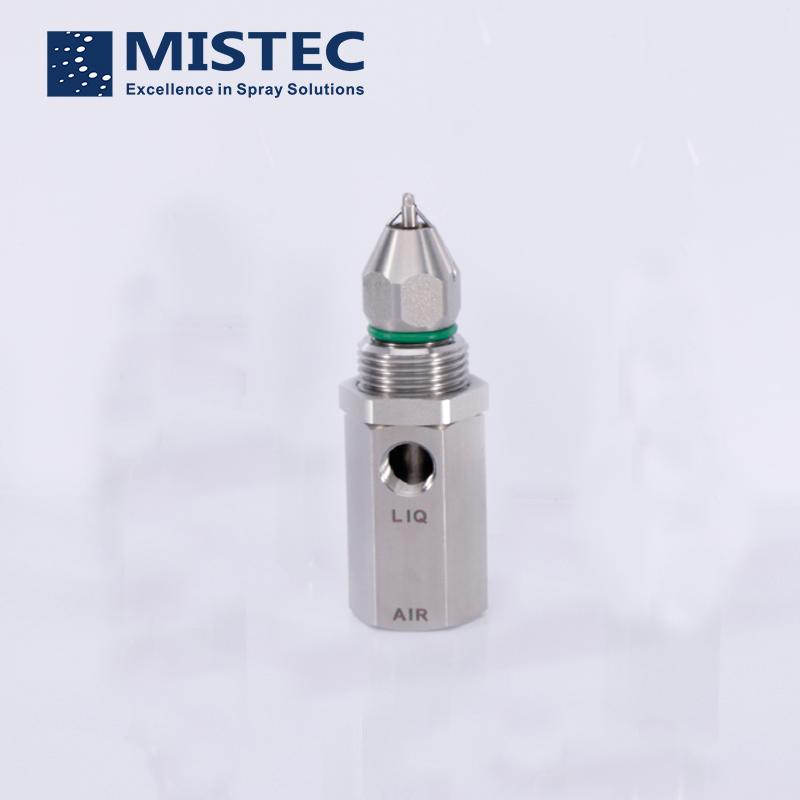

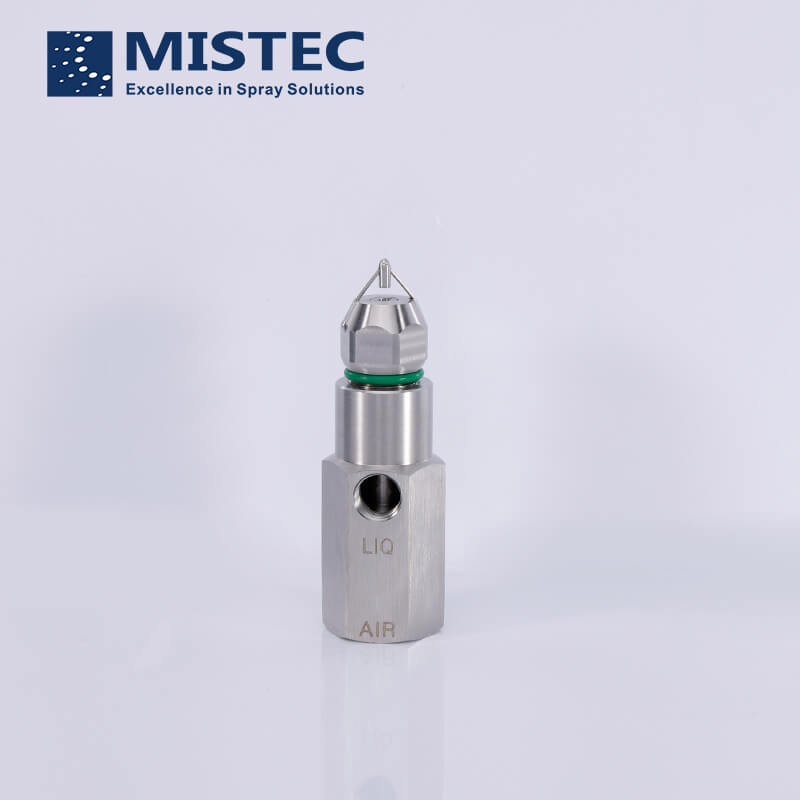

Ultrasonic Air Atomizing Dry Fog Nozzle

From the product structure and composition, Ultrasonic Air Atomizing Dry Fog Nozzle composition is actually very simple, there are 3-4 components, are the resonance cavity, shell, nozzle core, connecting rod. The atomized particle size is about 10μm.

Ultrasonic atomizing nozzle can achieve better uniformity, thinner coating thickness, higher precision. Ultrasonic spray nozzle can significantly reduce coating splash during the process of spray nozzle and realize the purpose of saving coating.

Ultrasonic Air Atomizing Dry Fog Nozzle: the use of ultrasonic energy will be water or liquid break up, forming a few micron to more than 100 micron size of tiny particles, to achieve air humidification, liquid granulation, mixing, promote chemical reaction, nozzle, metal melting system powder and other purposes.

The detail
Material:BRASS, SS, plastics (PP/PVC/PTFE), ceramics (SS), etc.
Jet Angle:30°, 60°, 80°
Inlet size:3/16'',1/8'',1/2'',1/4"
Spray pattern:Solid cone
Application:
Dust Removal , Air Control, Dust Control,Humidification

Categories	Spray Angle 80°	SV882 Spray Angle 60°	Spray Angle 30°
Gas pressure	5.2bar	3.5bar	5.2bar
Water pressure	1.5bar	0.6bar	1.2bar
Gas consumption	115L/Min	260L/Min	240L/Min
Water consumption	7.1L/Hr	45L/Hr	20L/Hr
Atomizing granularity	3-6microns	4-10microns	7-10microns
Gas filtration demand	<40microns	<40microns	<40microns
Water filtration demand	<50microns	<50microns	<50microns
