Design Features
Special designed atomization technology that applied two
stage atomization produce ultrafine droplets( SMD<10um)
Easy to install an maintenance
Extremely tiny droplets ,short absorb distance
Spray capacity（one nozzle）：2.4L/h
Maximum operating air pressure:0.3MPA.
Suitable for humidifying without wetting wall in tight space

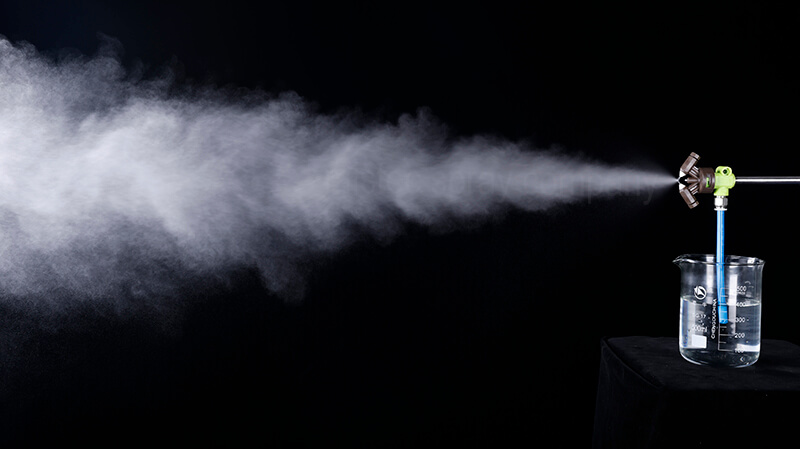

Siphon Type Two Fluid Dry fog nozzle
Design Features
- Special designed atomization technology that applied two
- stage atomization produce ultrafine droplets( SMD<10um)
- Easy to install an maintenance
- Extremely tiny droplets ,short absorb distance
- Spray capacity（one nozzle）：2.4L/h
- Maximum operating air pressure:0.3MPA.
- Suitable for humidifying without wetting wall in tight space
IPMA Series dry fog nozzles
- The IPMA series dry fog nozzle is a kind of air atomizing nozzles with unique atomization structure design
- Two fluid stream are formed and spray out from each tip at the first stage of atomization whencompressed air mix with water( droplets size about 20-50 um)
- The Droplets get further atomization under the energy of ultrasonic from two stream impinge each other at a high velocity (droplet size less than 10 um )
Application
1, cooling: outdoor restaurants entertainment venues stadium stadium airport bus stop large gatherings hotel hotel livestock farm pig horse cattle sheep cooling.
2, dust removal: the removal of dust particles in the air is mainly used in farms and mines to control pollution.
3, humidification: used for increasing air humidity in textile mills, cotton wool warehouses, parks, greenhouse laboratories, flour processing plants, etc.
4, agriculture: used for family farm mushroom cultivation field circus arena aviary dog kennels and feeding field to make the environment suitable for all kinds of poultry growth.
5, industry: metalworking workshop machinery workshop textile workshop clothing workshop printing and dyeing shoes plastic injection molding die casting heat treatment casting glass products spraying electroplating electronic chemical metallurgy leather toy manufacturing household appliances manufacturing used to cool dust, can also be used to eliminate electrostatic interference.
6, special use places: garden zoo shopping center exhibition cinema flower and wood breeding animal husbandry mushroom room, humidification and cooling, dry fog humidifier nozzle, can also be used as plant irrigation.
7, dry mist humidifier, special use method: add liquid disinfectant in water, can be used to disinfect botanical gardens, greenhouses, livestock farms, zoos, golf courses and so on.
