What is the spiral spray nozzle?

Spiral nozzle (spjt) is suitable for waste gas washing, gas cooling, washing and bleaching process, fire extinguishing, used in flue gas desulfurization system, Spiral spray nozzle used in dust removal system. the spiral nozzle is a solid conical or hollow conical spray nozzle with a flow rate range of 5.5 to 4140 l/min and a flow angle range of 60° to 170° at 3 bar.
Spray mode: there are two kinds of full solid cone atomization and hollow cone atomization, stainless steel spiral nozzle, spray angle is large, anti blockage.
The streamlined design of the chamber from the inlet to the outlet reduces the drag coefficient and is therefore suitable for a variety of positions.
Compact structure, with unblocked no inner core straight passage design, can make the liquid in the given size of the pipeline to achieve a large flow.
Liquid (or slurry) by tangential and collision with continuously smaller spiral surface, into tiny liquid beads ejection and formation of fog.
spiral nozzles



General application of nozzle:

Gas cooling
Exhaust gas washing
Dust control
The desulfurization
Packed tower spray
Wash and rinse
Asphalt forming tower spray cooling
Cold water tower, fractionating tower spray

Spiral nozzle design features:

Use the most common spiral nozzle, standard structure design;
A variety of angles and flows to choose from;
Fine uniform atomization effect;
Non-clogging structure design;
1/4 "to 4", threaded or flanged;
Using brass, 316L stainless steel, TEF, PP material;
And an oversized spiral nozzle

Recommended Attachments:
Split-hole connector: Alternative to threaded welded base, with leak proof washer


More connection sizes

Thread :  BSPT/ NPT  Inch size : 1/4,3/8',1/2',3/4',1' and others
spiral nozzle sizes

Spiral nozzles parameter data

spiral nozzle parameter

Multi-sizes spiral nozzle

In terms of jet Angle, the spiral nozzle has 60 degrees, 90 degrees, 120 degrees, 150 degrees, 170 degrees, etc.; In terms of spray mode, the spiral nozzle has a hollow conical direct spray, solid conical direct spray, hollow conical tangential type, hollow conical double spray, etc. In terms of size, spiral nozzles range from 1/4 inch to 4 inches; In terms of flow rate, 5.5 l/min to 4140 l/min at 3 kg pressure; In terms of material, spiral nozzle PP, PVC, nylon, PE, Saisteel, PVDF, PTFE, TELFON, F4, ceramic, 304 stainless steel, 316 stainless steel, 316L stainless steel, silicon carbide and so on.

spiral nozzle video


Get a Consult For Your Needs

We have a number of nozzle engineers with many years of experience, we can provide you with nozzle or spray system related expertise.
Are you interested in nozzle or spray system parameters, flow rate, pressure, orificket, connection components, thread size, etc.?
Or interested in application, sample test, installation, after-sales, service?
Or are you interested in price, delivery time, technical guidance?
All the relevant knowledge, our engineers will communicate with you.

Contact Us
Spiral nozzle Nozzle Article

Spiral nozzle technology and information

Spiral nozzle spray and spray pattern detail with hollow and full cone

Spiral nozzle spray and spray pattern detail with hollow and full cone

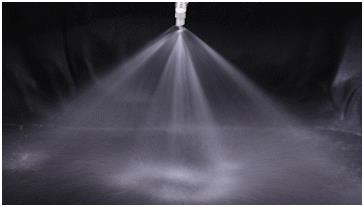

The spray pattern of spiral nozzle can be divided into full cone and hollow cone spiral spray shape.

Spiraljet hydraulic nozzles with full cone and hollow cone spray atomiz

Spiraljet hydraulic nozzles with full cone and hollow cone spray atomiz

Spiral jet hydraulic nozzle adopts hydraulic power through the spiral spray form of atomizing liquid,

Spiral nozzle specification sheet data

Spiral nozzle specification sheet data

This is a detailed specification of spiral nozzle parameters data sheet. It includes spiral nozzle in

Working principle of spiral nozzle

Working principle of spiral nozzle

The working principle of the spiral nozzle is a typical impact dispersion spray. There is no structur
