Multiple spray shapes

What is a solid cone nozzle?

 The characteristics of full cone nozzle (it also call solid cone nozzle) are that it can produce solid conical spray shape, the spray Angle range is 10°- 170°, and the spray area is round or square.

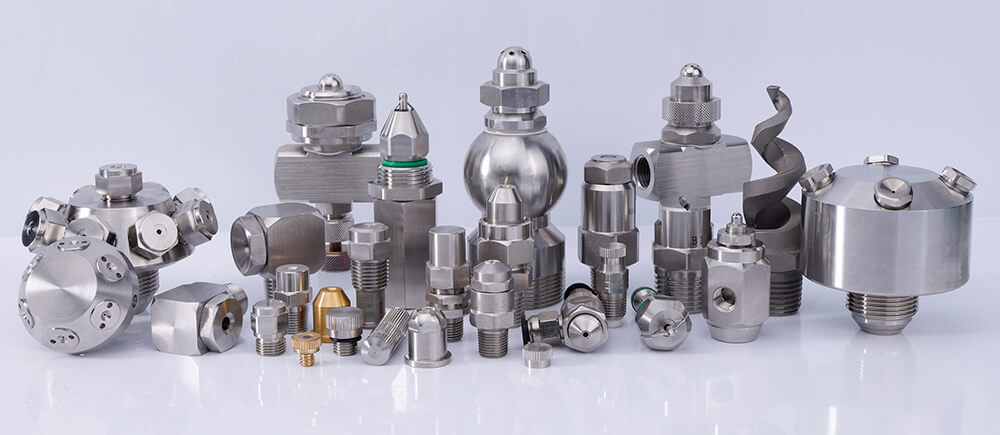

 full cone nozzle type
This kind of full cone nozzle can produce spray with uniform distribution and medium to large droplet size under a wide range of flow rate and pressure. This uniform spray distribution results from the unique blade design, large and unblocked flow channel, and advanced jet control characteristics.
 full conefullcone
Excellent for jet applications where one area is required to be covered. Full cone nozzle has been widely used in surface treatment, electronics, chemical, environmental protection, steel, automobile and other industrial production fields, solid cone nozzle to improve product quality and production efficiency plays an extremely important role.


Conventional parameters of our full solid cone nozzles


1, Thread connection size can choose(npt or bspt): common size 1/8', 3/8', 1/4', 3/4', 1/2', 1', 1.5 inch, 2 inch, 3 inch, 8 inch, 10 inch, etc
 full cone nozzle sizes
2, Pressure can choose: (0 to 217psi)0Mpa-15Mpa(common pressure 1Mpa, 2Mpa, 3Mpa, 4Mpa, 5Mpa, 10Mpa, can be customized according to the demand of different pressure.)

3, Flow rate can choose: 0L/min--1000L/min (common flow 0.5L/min, 1L/min, 5L/min, 10L/min, 20L/min, 30L/min)

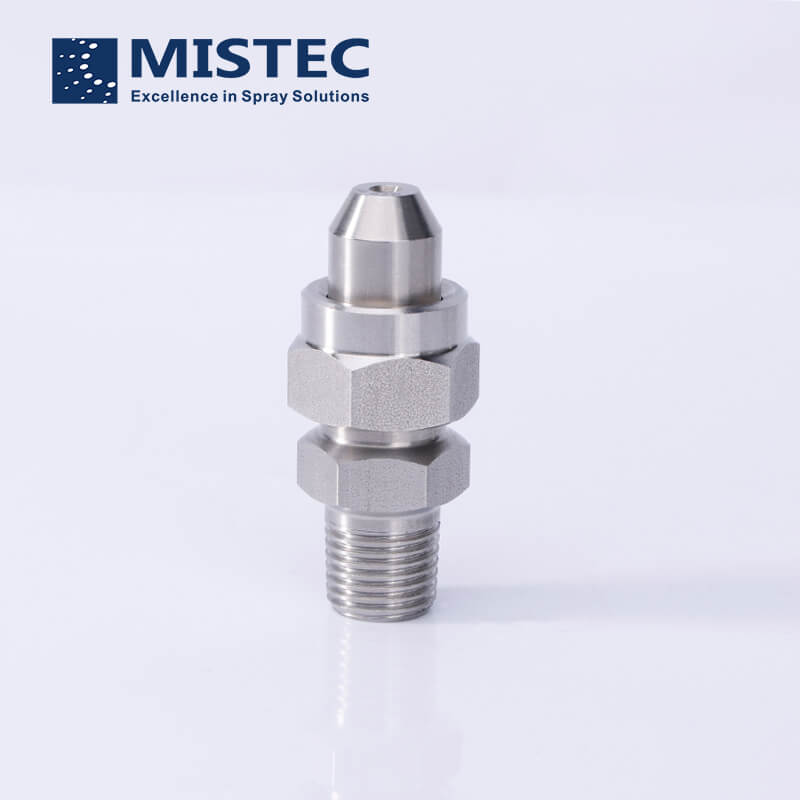

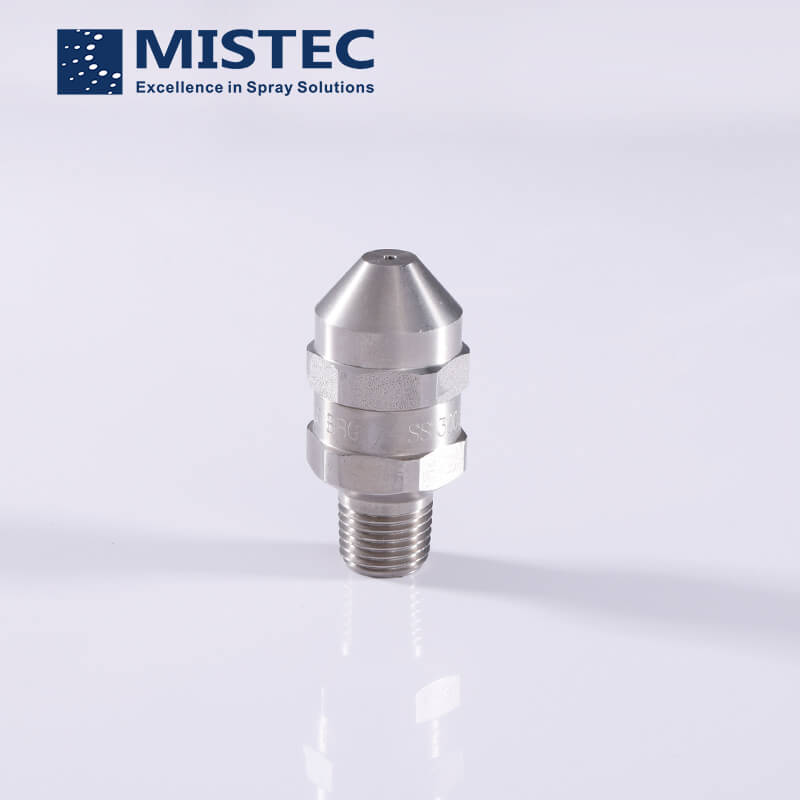

4, Spaying Angle can choose: common degrees 15°, 30°, 45°, 60°, 90°,120°, 170° (can be customized according to demand Angle 0°-360°)

5. Granularity: above 0um

6, Type : single fluid channel solid cone nozzle, double fluid solid cone nozzle

7, The nozzle manufacturing material can choose: stainless steel (SS304, 303, 316, 316L), BRASS, plastic (PVC, ABS, FUD)

8, Connection mode: external thread connection, internal thread connection, card sleeve connection, clip connection, quick disassembly connection, welding, flange connection


Full Cone Nozzle Video

Part of our full cone nozzle spray display

Full Cone Nozzle Article

Full Cone Nozzle technology and information

Spiral nozzle spray and spray pattern detail with hollow and full cone

Spiral nozzle spray and spray pattern detail with hollow and full cone

The spray pattern of spiral nozzle can be divided into full cone and hollow cone spiral spray shape.

Spiraljet hydraulic nozzles with full cone and hollow cone spray atomiz

Spiraljet hydraulic nozzles with full cone and hollow cone spray atomiz

Spiral jet hydraulic nozzle adopts hydraulic power through the spiral spray form of atomizing liquid,

full cone nozzles form the spray type

full cone nozzles form the spray type

The spray type covered by full cone nozzle is round, square or oval, and the area is completely fille

Structure Features of Full Cone Spray Nozzles

Structure Features of Full Cone Spray Nozzles

NozzleType Spray Pattern Flow Distribution Structure Features Design Features Standard angle full con
