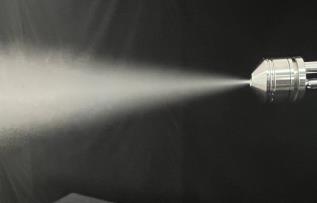

BIM-BB20001S siphon atomizing nozzle
01 s siphon type air atomizing nozzles is made of stainless steel material, cylindrical shape on the whole, the air inlet and siphon holes are at the nozzle at the rear, with three other kinds of siphon type than the appearance of the air atomizing nozzle size is the smallest size, total length of only 40 mm, 18 mm in diameter, suitable for installation of narrow space, and is convenient for moving small spray equipment.
BIM-BB20003S siphon air atomizing nozzles
03S siphon air atomizing nozzle is made of stainless steel material, beautiful shape, the overall cylindrical, spray cap body is funnel-shaped, nozzle overall size 42mm long, diameter 20mm, air inlet and siphon hole are in the nozzle tail. The distance between spray cap and nozzle body can be rotated to adjust the spray effect.
BB20075S siphon air atomizing nozzle
Type 075S siphon air atomizing nozzle is made of stainless steel material, the whole spindle shape, length 45mm, diameter 30mm, the inlet hole is located at the bottom of the nozzle, the siphon hole is located at the side of the nozzle and the inlet hole is 90°, and the relative position of the siphon hole is convenient to fix. Air inlet and siphon holes are connected by quick tap thread plug.
Mf-1 siphon type dry mist nozzle
Mf-1 siphon dry mist nozzle is made of PTFE, which is almost not corroded by any chemical reagent. It can be disassembled by rotating buckle for convenient maintenance. The nozzle has a maximum length of 65mm and a maximum width of 65mm. The air inlet hole is located at the bottom of the nozzle. The siphon hole is 90° with the nozzle.Our other spay nozzles:
