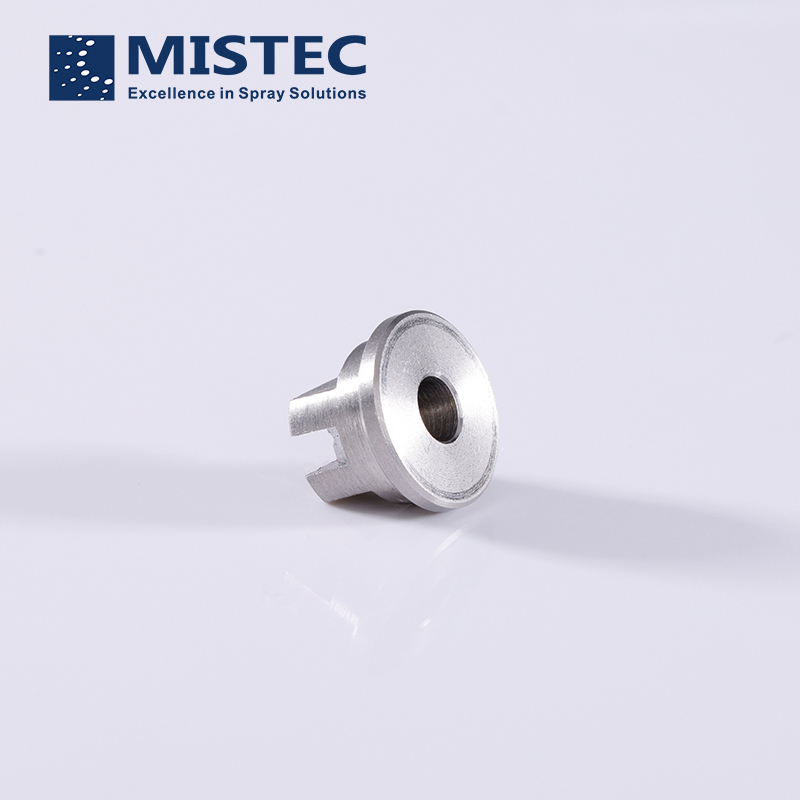

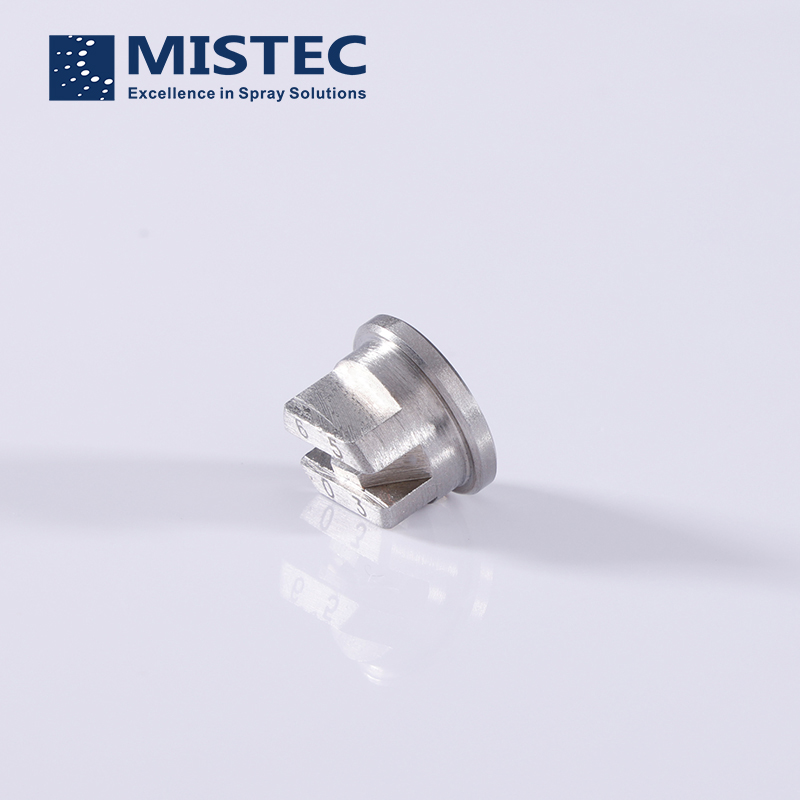

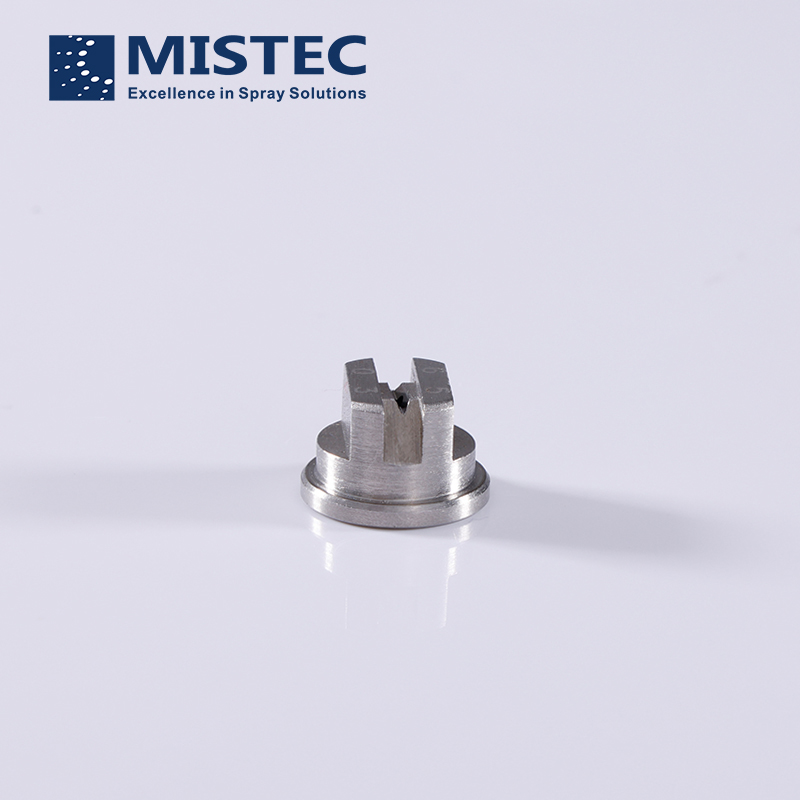

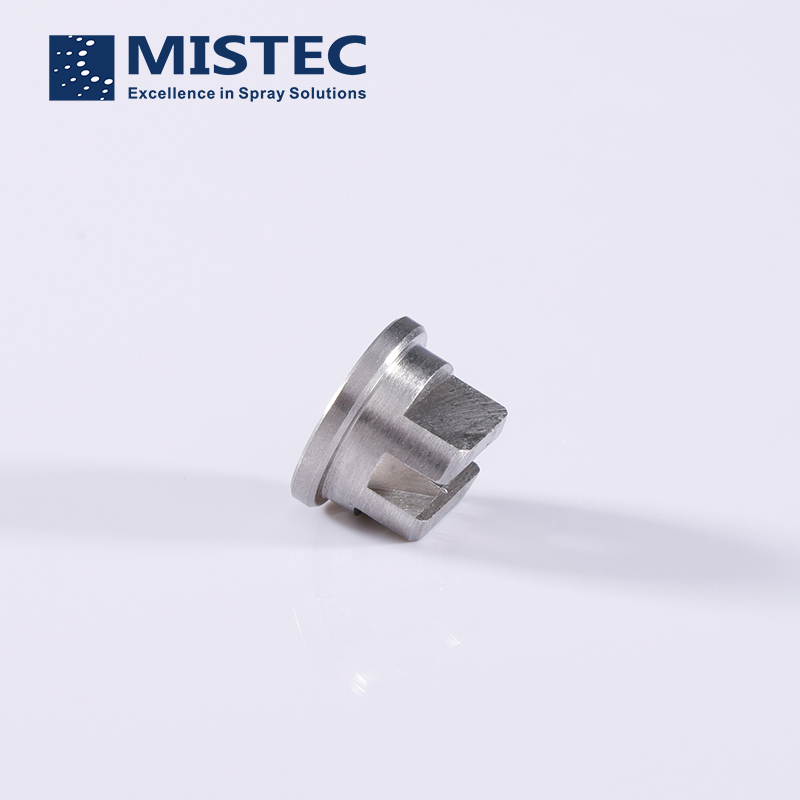

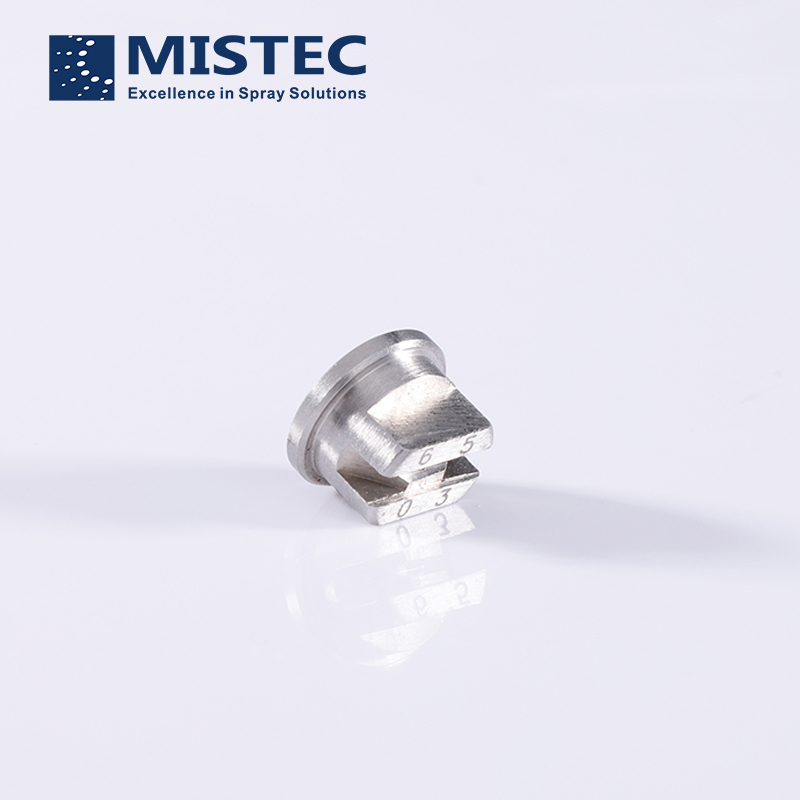

This Flat tee jet spray nozzle, as a nozzle head, is disassembled and can be installed in different nozzles.We offer it in a variety of sizes to meet the needs of consumers.

Spray Characteristics

● Spray pattern: flat fan and straight jet
● Spray angles: 0°, 5°, 15°, 25°, 40°, 50°, 60°
● Offset angles: 5°, 15°
● Flow rates: 1.9-122L/min @ 3bar

Ordering Information：SJV 1/4- SS 6504
 Fine fog particles, uniform atomization
Material: Brass, SS, 316SS

Design Features

● Also called uni jet spray nozzle
● Three-piece construction, only requires replace tips only if get wear.
● No internal parts;
● Uniform distribution, high impact;
● Tapered flat fan design can produce even flow coverage over wide areas;
● Optional removable strainer for easy cleaning;
● Male connections, 1/8” to 2”, BSPT or NPT;

More Thread :1/8, 1/4, 3/4, 1/2, 3/4, 1, 1-1/2, 2,3 inches and other BSPT and NPT etc

Jet spray nozzle features

1. It can produce fan-shaped spray with high impact force, and the spray is evenly distributed, the droplet size is medium, and the spray shape has a definite cleaning edge;
2. The jet Angle is 0-110 degrees;
3. Large and unobstructed flow to minimize the blocking phenomenon;
4. Customized PVDF, PP, F4, brass and other special materials;
5. Deflection Angle design improves its striking strength, making cleaning and other capabilities stronger.

Common Applications
Washing & rinsing
Coating fabrics & steel siding
Moistening paper products
Fire protection / suppression
Chemical cleaning
High pressure cleaning
Cooling and quenching
Spray coating
