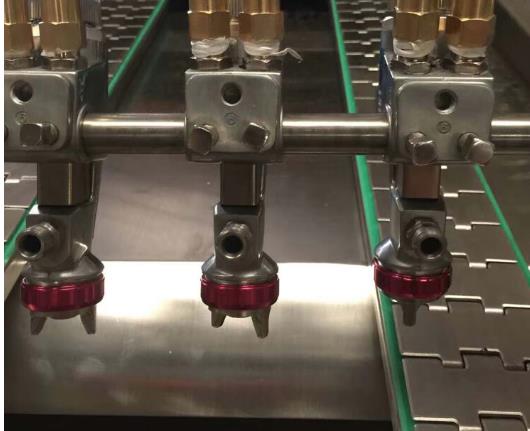

Automatic spray gun in the process of use sometimes there are some problems, we often automatic spray gun fault analysis in detail, and according to the phenomenon analysis of the cause, to find a solution.




First, phenomenon: the shape of the spray amplitude is skewed to one side

Cause: gas cap center hole or atomization hole blocked
Countermeasures: 1. Clean atomizing cap; 2. Replace the atomizing cap


2. Phenomenon: deviation to the left or right

Reasons: 1. The fan control hole on one side of the gas cap is blocked; 2. The gas cap is damaged
Countermeasures: 1. Clean atomizing cap; 2. Replace the atomizing cap


3. Phenomenon: The central spray width is too thick


Reasons: 1, the spray coating viscosity is too high; 2, spraying pressure is too low; 3, the diameter of the nozzle and the thimble increase and decrease due to wear.

Countermeasures: 1, reduce the viscosity of the coating; 2, increase the spraying pressure; 3. Replace the nozzle set.




Four, the phenomenon: jet splitting


Reasons: 1, paint viscosity is too low; 2, spraying pressure is too high; 3. The inner diameter of the fan control hole is too large; 4, not enough paint; 5. The atomizing air passage is blocked

Countermeasures: 1. Increase the viscosity of the coating; 2, lower the spraying pressure; 3, replace the nozzle set; 4, add enough paint; 5. Clean the air passage of the spray gun.



Five, phenomenon: jump gun


Reasons: 1, the nozzle is not tightened or not installed; 2. Needle sealing kit is loose; 3. The connecting nut of the automatic spray gun is loose (the spray gun in the lower pot); 4, insufficient paint in the pot; 5. The nozzle set is damaged.

Countermeasures: 1. Tighten the nozzle or clean and install the nozzle set; 2. Tighten the thimble sealing kit; 3. Tighten the connecting nut; 4, supplement paint; 5. Replace the nozzle set

6. Phenomenon: The spray width is heavy or heavy

Reasons: 1, the nozzle, thimble or air cap of the air outlet is blocked by debris; 2. Gas cap or nozzle is damaged

Countermeasures: 1, cleaning nozzle set; 2, replace the nozzle set;



Seven, phenomenon: automatic spray gun can not spray paint or a small amount of paint

Reasons: 1. The air refill hole of the gun pot cover is blocked or the gas cap and suction pipe are seriously blocked; 2. There is no paint in the pot; 3, thimble stroke is too small.

Countermeasures: 1. Clean the air refill hole, air cap and suction tube on the lid; 2, supplement paint; 3, rotate the paint flow adjustment knob to increase the stroke of the needle valve

Eight, phenomenon: nozzle leakage of paint

Reasons: 1, the thimble sealing nut is too tight; 2. There are foreign bodies inside the nozzle port; 3, the nozzle and thimble are not matched or damaged; 4. The thimble return spring is broken or not installed.

Countermeasures: 1. Loosen the thimble seal nut; 2, clean the nozzle; 3, replace the nozzle set; 4. Replace the thimble return spring or install the upper thimble return spring.




Nine, phenomenon: the spray amplitude can not be adjusted


Reasons: 1. The control holes on both sides of the gas cap are blocked; 2. The spray amplitude regulator is damaged or installed incorrectly; 3. The air passage of the automatic spray gun fan control hole is blocked.

Countermeasures: 1. Clean the gas cap; 2. Replace the spray amplitude regulator or install the spray amplitude regulator correctly; 3. Clean the air passage.

10, phenomenon: can not adjust the air pressure or just connected to the compressed air gas will be directly from the muzzle

Reasons: 1, the air regulator is damaged or the air valve is damaged; 2. The air valve return spring is broken or not installed.

Countermeasures: 1, replace the air regulator or air valve; 2. Replace the air valve return spring or install the air valve return spring.

11, phenomenon: thimble seal leakage paint

Reasons: 1, thimble seal ring wear; 2, thimble sealing ring gasket is not installed; 3, thimble seal ring spring is damaged or not installed; 4, thimble seal nut loose; 5. The contact between the thimble and the sealing ring is worn; 6. The thimble is not compatible with the spray gun.

Countermeasures: 1, replace the thimble seal ring; 2. Install the thimble sealing ring gasket; 3. Replace or install the thimble seal ring spring; 4, tighten the thimble sealing nut; 5, replace the nozzle set; 6. Replace the nozzle set that matches the automatic spray gun.
