What details should be paid attention to when installing atomizing nozzle? The structure of air atomizing nozzle should be paid attention to when connecting and installing. Correct installation of air atomizing nozzle for better spray effect.

The installation of atomizing nozzle seems simple, but if you do not pay attention to the installation of small details will also affect the air atomizing nozzle spray effect and service life. What details should be paid attention to when installing atomizing nozzle?




Installation steps of air atomizing nozzle


1. Atomizing nozzle should be installed after the pressure test and flushing of the system are qualified;

2. When the atomizing nozzle splash plate is higher than the belly of the ventilation pipe with a width less than 1.2m or the bottom of the beam, the vertical distance between the atomizing nozzle splash plate and the belly of the ventilation pipe should meet the provisions of relevant standards;

3. the installation of atomizing nozzle suitable for the use of the corresponding special elbow, tee;

4. Atomizing nozzles installed in places prone to mechanical damage need to be sprayed with atomizing nozzle protective cover;



5. When the atomizing nozzle is installed near the partition without reaching the top, the horizontal distance and the minimum vertical distance between the atomizing nozzle and the partition should be subject to relevant standards

6. when the nominal diameter of atomizing nozzle is less than 10 mm, the filter needs to be installed on the water distribution pipe or water distribution main pipe;

7. When installing atomizing nozzle, the design requirements of the distance between the splash plate and the ceiling, door, window or wall should be met;

8. When installing the atomizing nozzle, the atomizing nozzle shall not be disassembled or modified, and any decorative coating shall not be sprayed on the atomizing nozzle;

9. When the width of the ventilation pipe is greater than 1.2 meters, the atomizing nozzle should be installed below the belly of the ventilation pipe;



10. The atomizing nozzle shall be installed with a special wrench, and the frame of the atomizing nozzle shall not be used for twisting; Because the frame and splash plate of the atomizing nozzle will be deformed and cause damage to the release original, it is necessary to use the atomizing nozzle with the same specifications and model for replacement;

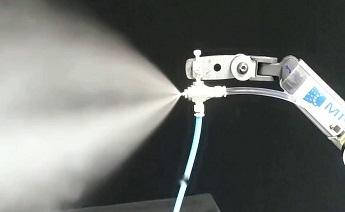

Air atomizing nozzle installation way also has a lot of kinds, different air atomizing nozzle installation methods, application fields are different, through the air atomizing nozzle installation we can choose appropriate own joint, below is the quick connection-peg, better fixed installation in the field of application, achieve a better spray effect.

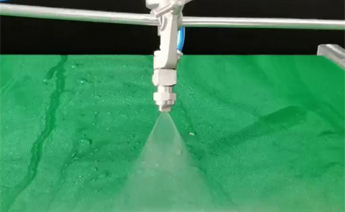

There are many ways to install air atomizing nozzles. Each spray device is composed of an air cap and a liquid cap, which can provide fan-shaped and circular spray modes with a wide flow range. Nozzle body inlet joint has a variety of sizes, air atomizing nozzle installation method is suitable for most common pipes. The above air atomizing nozzle mounting parts can be interchangeable, which provides flexibility for obtaining different air atomizing nozzle spray performance.
