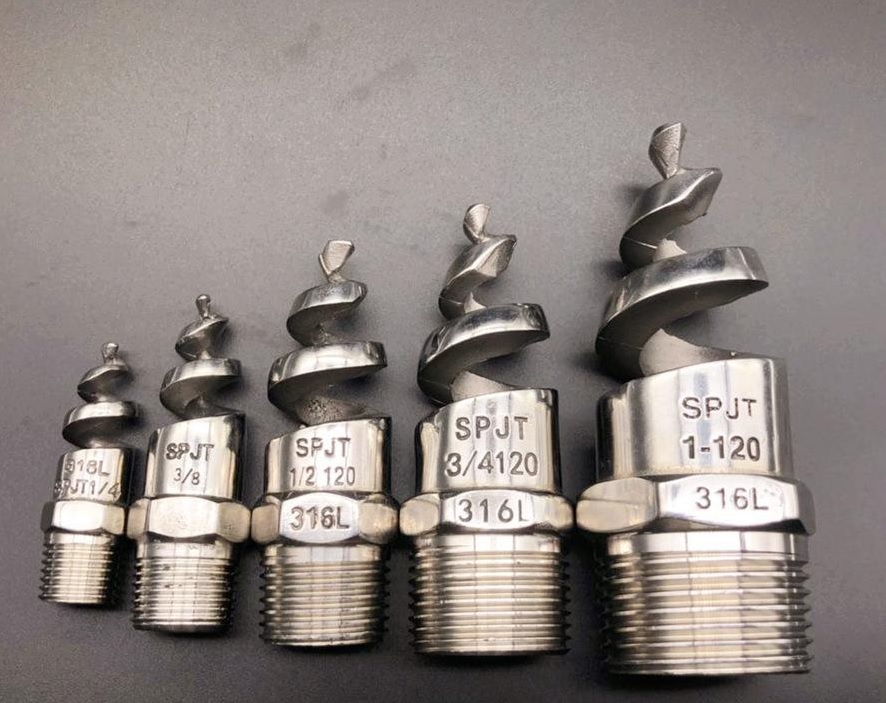

Stainless steel spiral nozzle is one of the most spiral nozzle types.

The spiral nozzle is a kind of nozzle in the industrial nozzle, and the spiral nozzle is also a popular nozzle in ordinary people's use, and the type of the spiral nozzle is more. Common stainless steel spiral nozzle is the use of frequency is very large, ceramic spiral nozzle is also more people use a nozzle, but the price of ceramic spiral nozzle is relatively higher, because the applicability of the spiral nozzle is relatively strong, where chemical, environmental protection, power, textile and other industrial fields are widely used.

What are the advantages of stainless steel nozzle? Now let's understand what features and models of stainless steel spiral nozzle are available for us to choose.




First, stainless steel spiral nozzle is different from the general nozzle design


In general, there is a blade inside the solid nozzle of the nozzle, so that the liquid flows in the same clockwise or counterclockwise direction through the guiding action of the blade, and the liquid produces centrifugal force due to the action of water pressure, thus producing conical spray.

Stainless steel spiral nozzle is different, it is a typical impact disperse spray, nozzle internal structure, is a smooth channel, water flow is through the impact of the spiral layered interface, so that the product layered spray.




Two, stainless steel spiral nozzle is not blocked


Because the stainless steel spiral nozzle has no internal structure, the impurities in waste gas wastewater can be passed through the nozzle without blockage, which is undoubtedly a good advantage for waste gas and waste water. Waste gas wastewater contains a lot of impurities, and the use of stainless steel spiral nozzle just solves this problem.



Three, stainless steel spiral nozzle can achieve multi-layer spray

The conventional 120 degree spiral nozzle has 3 to 4 spray stratified interface, some other angles even have many layers of stratified interface. The spray effect is: each interface forms a cone spray surface, think about it, a spiral nozzle is less than 3-4 cone spray surface, more than 6-7 spray surface, which is the effect of ordinary solid cone nozzle how many times?




Four, stainless steel spiral nozzle models


In terms of jet Angle, stainless steel spiral jet nozzle has 60 degrees, 90 degrees, 120 degrees, 150 degrees, 170 degrees and so on; In terms of spray mode, stainless steel spiral nozzle has hollow conical direct spray, solid conical direct spray, hollow conical tangential type, hollow conical double spray, etc. In terms of size, it ranges from a quarter inch to four inches; In terms of flow size, 5.5 l/min to 4140 l/min at 3 kg pressure; In terms of materials, there are PP, PVC, nylon, PE, STEEL, PVDF, PTFE, TELFON, F4, ceramic, 304 stainless steel, 316 stainless steel, 316L stainless steel, silicon carbide and so on.



Five, stainless steel spiral nozzle is relatively low cost


The use of stainless steel spiral spray nozzle cost is low, the use of injection molding, casting, kiln sintering and other processes, because it is the use of mold manufacturing products, so many more than ordinary metal nozzle cost is much lower, and easy to produce large quantities of goods. For example, if one hundred thousand stainless steel spiral nozzles are produced, it takes more than 1 months from mold opening to completion. How about processing? It is estimated to take more than half a year.


Stainless steel spiral nozzle has many advantages. Stainless steel spiral nozzle can be used in different environments, at the same time in different environments, people have high requirements for stainless steel spiral jet nozzle. The types of stainless steel materials are SS304, 303, 316, 316L.
