Narrow Spray Angle Type High Impact Flat Jet Nozzles

Spray Characteristics
● Spray pattern: flat fan
● Spray angles: 15°, 25°, 35°, 40°, 50°
● Flow rates: 3.9 to 79 L/min @ 3bar
Thread :1/8, 1/4, 3/4, 1/2, 3/4, 1, 1-1/2, 2,3 inches and other BSPT and NPT etc

Ordering Information
V - 3/8 - SS 4050
Material: SS, Brass
Connection: internal thread and external thread

Contact Us Info
We manufacture and sell different types of nozzles with factory prices, high quality and fast delivery.
We can provide samples for you to test
Our business types: retail, wholesale, customized, OEM, etc.Welcome to consult.
For any kind of query, contact us like price,delivery,sizes,MOQ,Customized etc.
  • Description

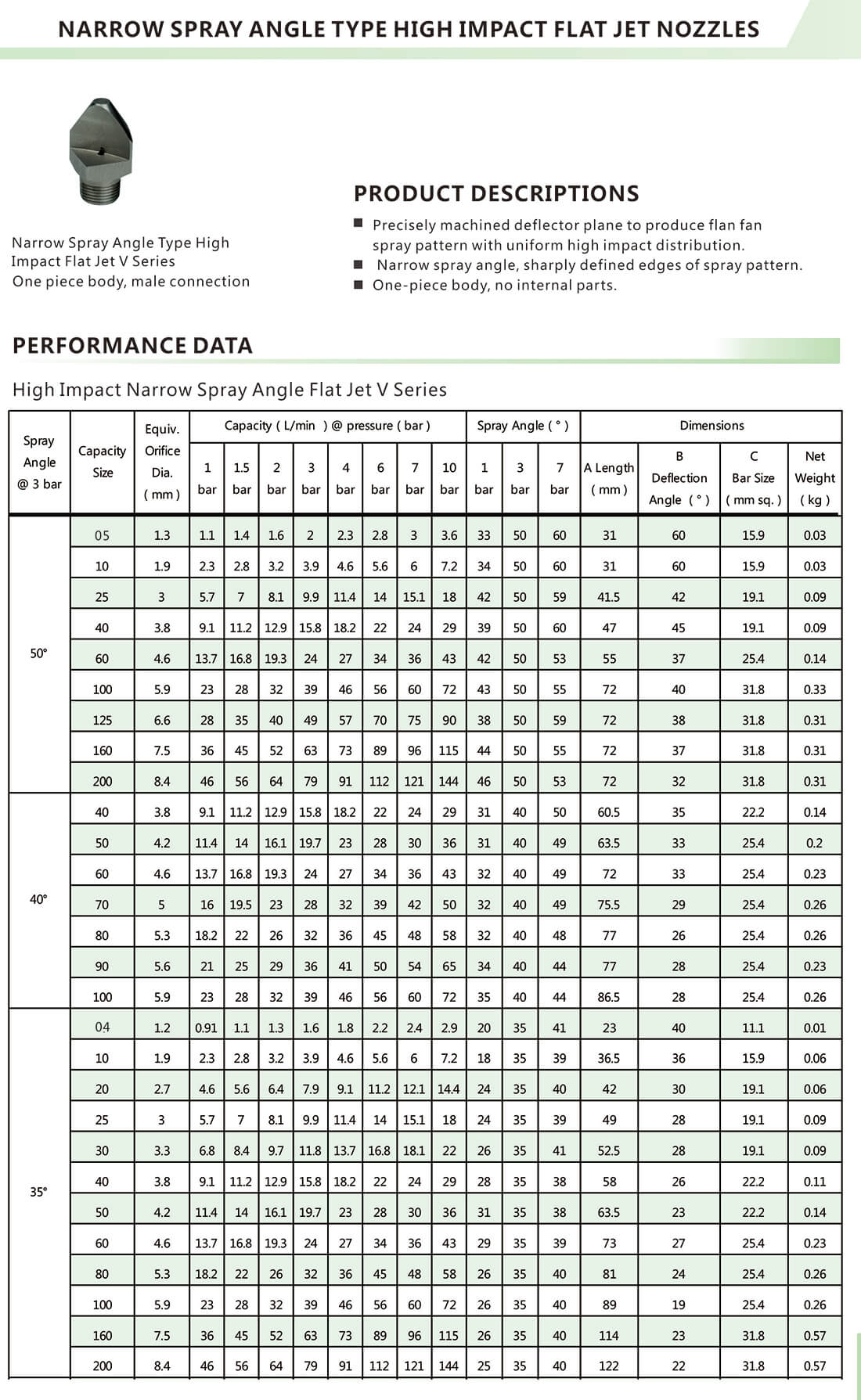

  • Nozzle parameter data
  • Quote Form
The characteristic of narrow Angle fan nozzle is that it can produce narrow Angle fan spray with high impulse force.The spray produces an evenly distributed spray with medium droplet size.
Narrow Angle nozzle spray shape edge definition is very clear.
Narrow Angle nozzle with outer pipe thread street integral design.
Large, fluid channels reduce congestion.The carefully crafted diversion plane provides a uniform, high-impact spray shape.

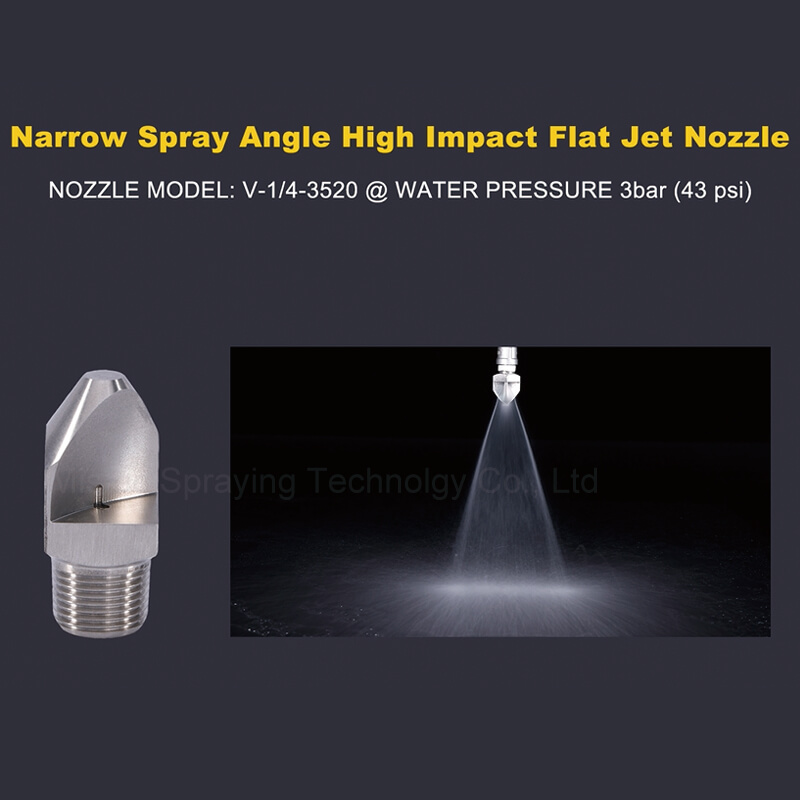

Spraying demo

Spray Characteristics

● Spray pattern: flat fan
● Spray angles: 15°, 25°, 35°, 40°, 50°
● Flow rates: 3.9 to 79 L/min @ 3bar

Ordering Information
V - 3/8 - SS 4050
Material: SS, Brass
Stainless steel (SS304, 303, 316, 316L), BRASS (BRASS), plastic (4F) and other materials to choose .
Connection: internal thread and external thread

Design Features

● Simple design in nozzle structure;
● Precisely machined deflector surface produce narrow spray angles ;
● Thin line of spray pattern, high impact;
● Relatively large orifice for clogging resistance;
● Male connection, 1/8” to 3/4”, BSPT or NPT;

Common Applications

narrow Angle fan nozzle is widely used in washing gravel, washing blankets, mesh, high impact washing, cleaning oil, fruit and vegetable washing, electroplating line washing, sheet metal parts pretreatment cleaning, paper machine "stable paper frame" spray.
Gravel & stone washing
Conveyor cleaning
Peeling stock from paper making screens
High impact washing
Fruit & vegetable washing
Oil removing
Stripping agent spraying
Wet sheet humidifying
Paper web humidifying
