Design Features
● One-piece construction;
● V shape groove of the orifice to produce tapered flow distribution;
● No internal parts;
● Small to coarse droplets, low to medium impact ;
● Male connections, 1/8” or 1/4”, BSPT or NPT;

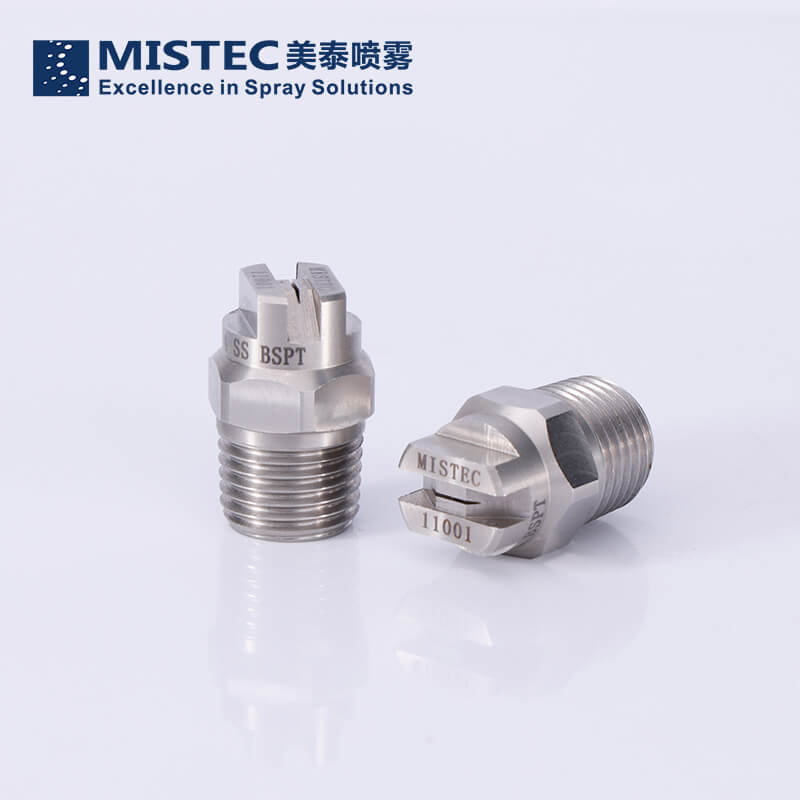

Small Flow Rate Flat Fan Spray Nozzles

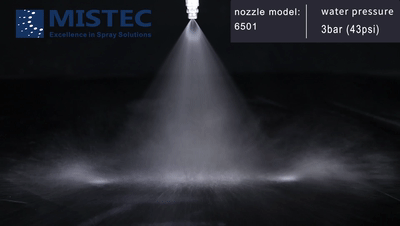

This series flat fan nozzle features a very clean and thin flan fan spray pattern with relatively low flow rates. The V-shape groove orifice intersects with spherical water inlet to form a ellipse orifice,from which the liquid spray out to produce the flat fan pattern. The impact of the spray is low to medium and droplet size is medium to coarse. The spray angles of a certain flat jet nozzles is related to the working pressures. Please turn to our sales engineers for more information to choose the proper nozzles. the spray angles under different working pressures.
Design Features
● One-piece construction;● V shape groove of the orifice to produce tapered flow distribution;
● No internal parts;
● Small to coarse droplets, low to medium impact ;
● Male connections, 1/8” or 1/4”, BSPT or NPT;
Common Applications
Washing and Cleaning, Rinsing, Coating, Spray Cooling, Pesticide Spraying, etc.
