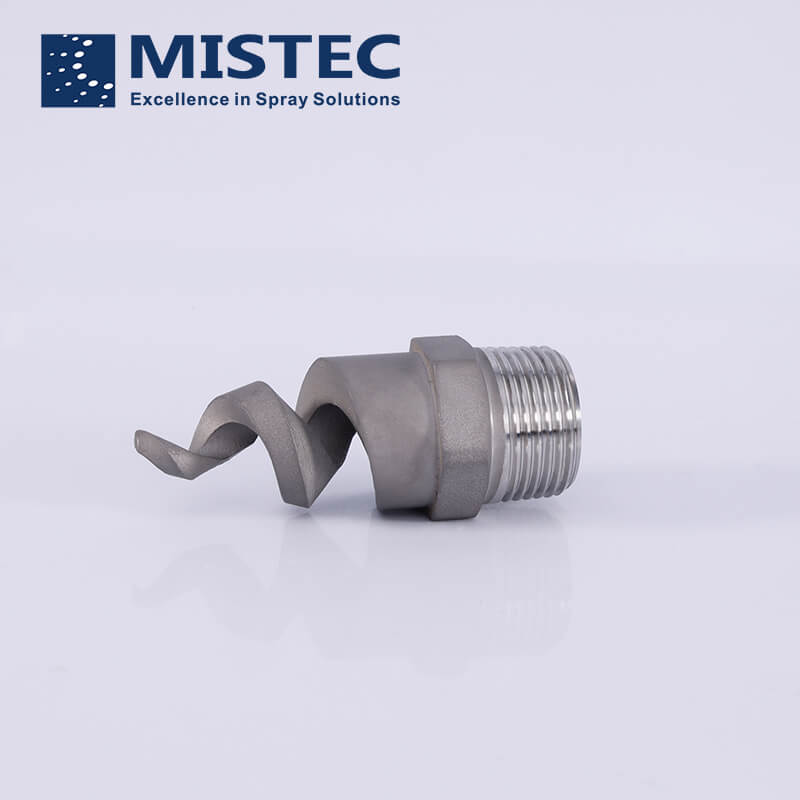

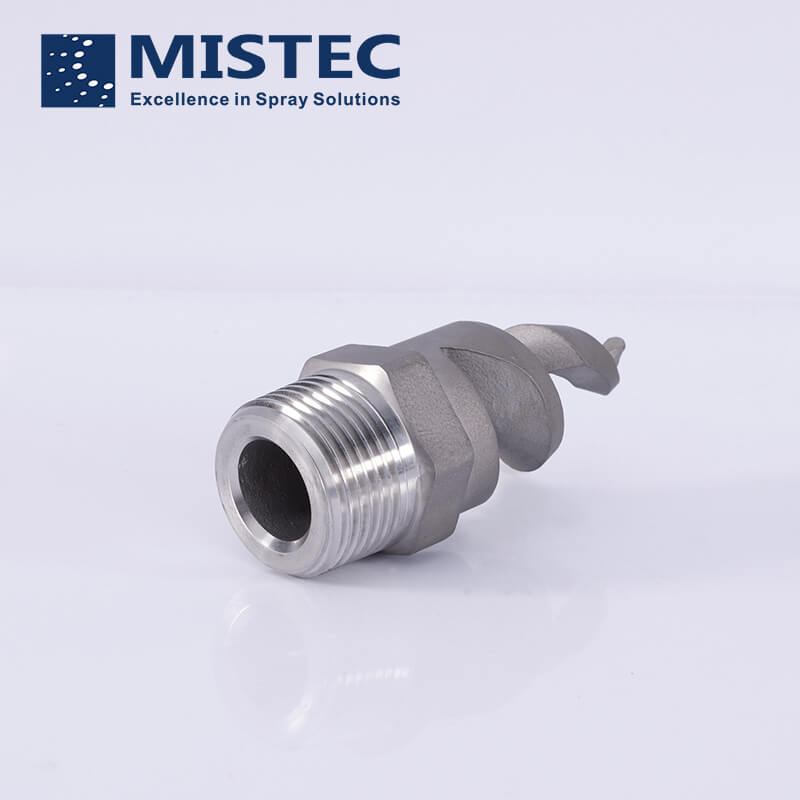

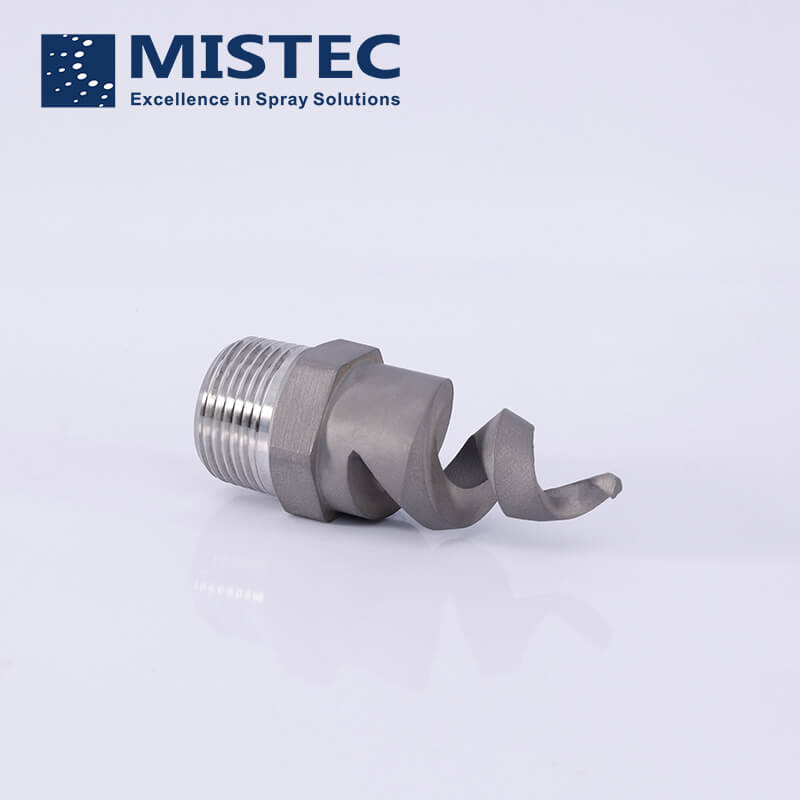

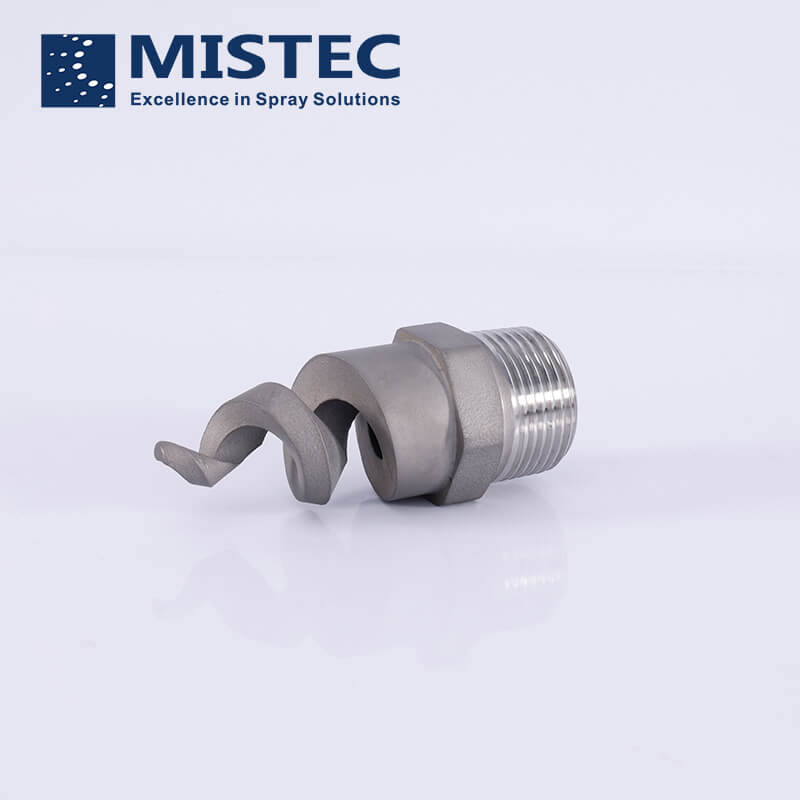

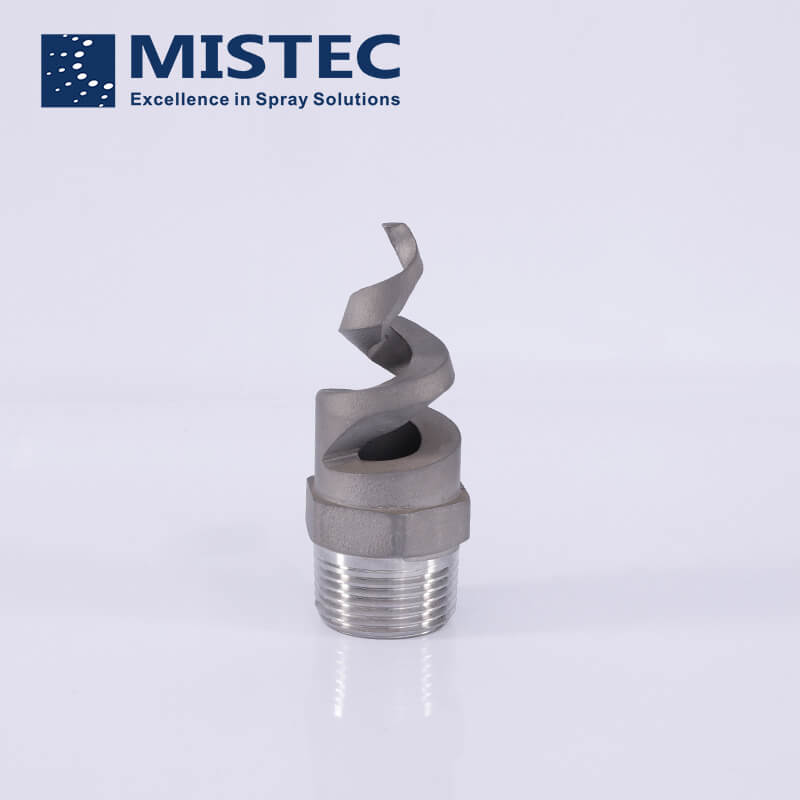

Full cone spray spiral jet nozzle adopts full cone spray shape design, jet Angle range of 60°-170°, at 3 bar pressure, fluid flow rate range of 5.5-41 l/min.
Full cone spiral nozzles can be installed or updated on most piping systems.
Nozzles are available in NPT or BSPT (external) thread type.
Typically 1/4 "to 2" nozzles can be made of brass, 316 stainless steel castings, TEFLON or PVC materials, respectively.

Spray Characteristics

●Spray pattern: Spiral full cone;
●Spray angles: 60°to 170°;
●Flow rates: 2.6 to 2,000 L/min @ 0.7bar;
Connection Size: 1/2" DN15 External Thread
Ordering Information:3/8 SPJT – SS 12020;
Material: SS, Brass, PP, Teflon, other material available on your request;
Working pressure: 10- 21.8 PSI (69-150Kpa)

Common connect size

There are NPT or BSPT (male) threads nozzles available:1/8,3/8,14,3/4,1/2,1 inch,1.5 inch,2 inch,3 inch,4 inch 6 inch 8 inch 10 inch External Thread

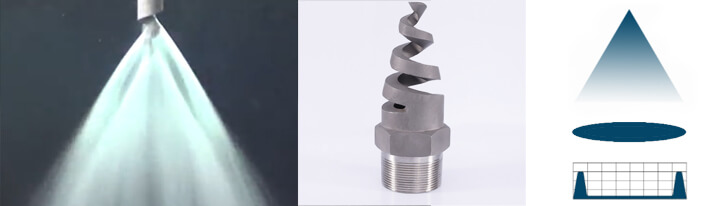

Spiral Full Cone Spray Pattern

Application industry

The general application of waste gas tower, washing tower, spray tower, acid fog tower installation nozzle washing waste gas power plant, chemical plant, with the nozzle desulphurization of environmental protection treatment, factory buildings water cooling, forest fire prevention.
1. Exhaust gas washing
2. Gas cooling
3. Washing and bleaching process
4. Fire prevention and extinguishing
5. Daily living equipment

Full cone spiral jet nozzle manufacturing characteristics

1. Specially designed spiral diversion surface to produce solid conical or hollow conical spray;
2. No internal parts, large and unobstructed flow channel to reduce congestion;
3. High atomization effect;
4. Water spray momentum;
5. Uniform coverage, medium to large granularity;
6. Large range of flow and spray Angle;

Our other spiral nozzles

We sell and manufacture screw nozzles of different specifications, different spray angles, different spray shapes, different flow, different pressure, different connection sizes and so on.
