Hollow cone spiral nozzle adopts hollow cone-shape design,60°to 170° jet angle scope.1/2",1/4",3/8" multi connection sizes. Hollow cone spiral nozzle made of stainless steel.Hollow cone spiral nozzle has good wear resistance, corrosion resistance, fog, blocking and so on.The spray area of the spiral nozzle is composed of a series of one or more continuous concentric hollow cone rings, and the spray shape is hollow cone.

Spray Characteristics of hollow spiral nozzle

●Spray pattern: hollow cone shape ;
●Spray angles: 60°to 170°; generally 120°
●Flow rates: 2.6 to 2,000 L/min @ 0.7bar;
●Working pressure: 10- 21.8 PSI (69-150Kpa);
Ordering Information:3/8 SPJT – SS 12020

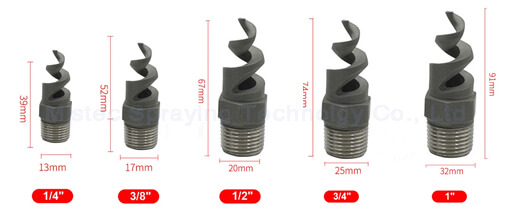

Connection size: C: 1/2",1/4".A:3/8".B: 1/2".D:3/4".1" 11/4" External Thread;
Material: SS, Brass, PP, Teflon, other material available on your request;

Common size :1/8,3/8,14,3/4,1/2,1 inch,1.5 inch,2 inch,3 inch,4 inch 6 inch 8 inch 10 inch

Application industry

Hollow cone spiral nozzle is widely used in flue gas desulfurization, dust removal, waste gas treatment, wastewater treatment, fire prevention, fire fighting, spray cleaning and other fields.And some equipment for daily living.

Performance parameters of spiral nozzle



Hollow cone spiral nozzle manufacturing characteristics

1. Specially designed spiral diversion surface to produce hollow conical spray;
2. No internal parts, large and unobstructed flow channel to reduce blockage;
3. High atomization effect;Water spray momentum;
4. Uniform coverage, medium to large granularity;
5. Large range of flow and spray Angle;

Hollow nozzles have a smooth flow path that minimizes fluid clogging and maximizes fluid flow in a given size pipe.
Stainless steel hollow spiral nozzles can be installed or updated in most piping systems.
Available with NPT or BSPT(external thread) hollow cone spiral nozzles, stainless steel spiral hollow cone spiral nozzles are generally British external thread specifications, can be connected with thread adapter for internal thread.

Our other spiral nozzles

We sell and manufacture spiral nozzles of different specifications, different spray angles, different spray shapes, different flow, different pressure, different connection sizes and so on.
