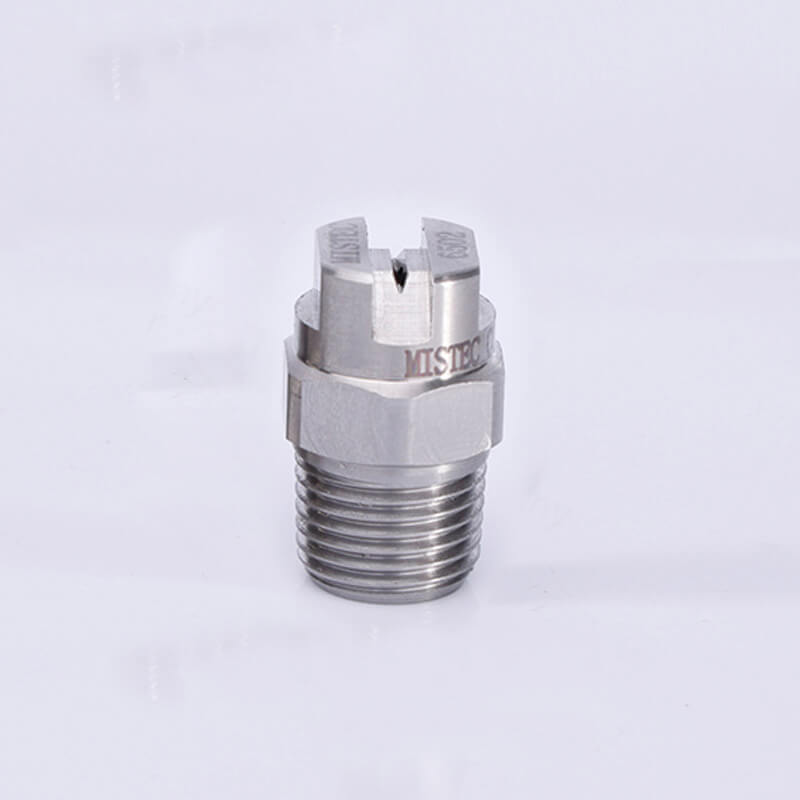

Flat Fan Nozzles

We manufacture and sell fan nozzles in many sizes
Flat fan nozzles suitable for cleaning, watering, lubrication, cooling, humidification,painting systems etc.
Raw materials: available 304 316 316L stainless steel, brass etc.
Available in 1/8″, 1/4″, 3/8″, 1/2″, 3/4″ and 1″ 2″ thread sizes
Spray angles range from 0° to 160°.
Pressure: available low pressure , high pressure, high impact
Rust resistance and durable to use.

Flat fan nozzle catalogue PDF

● Spray pattern: flat fan and straight jet ● Spray angles: 30 to 110 ● Flow rates: 0.4 to 4.9 L/min @ 3bar Even-edge flat spray pattern ensures high impact. Thread Size :1/8 -2 BSPT or NPT Material: Hardened Stainless Steel...

High Pressure Washer Spray Fan Nozzle Tip 1/4 1/8 Thread

Thread Size :1/8

Power: low pressure Spray: Flat fan shape Thread Size :1/8 -2 BSPT or NPT Material: Hardened Stainless Steel...

Low Pressure Flat Fan Spray Nozzles

1/4 1/8 3/4 3/8 bsp npt etc

Spray Characteristics Material: brass, stainless steel, plastic Installation method: threaded connection Thread size: 1/8-3/4 BSPT or NPT ● Spray pattern: flat fan and straight jet ● Spray angles: 40, 50, 65, 73, 80, 95, 110 ● Flow rates: 1.2to 25 L/min @ 3bar ...

Medium Flow Rate Flat Jet Fan Nozzles

1.2 to 25 L/min 1/8-3/4 bspt or npt stainless steel fan nozzle tip

Spray Characteristics ● Spray pattern: flat fan and straight jet ● Spray angles: 0, 5, 15, 25, 40, 50, 60,90, 110, 150 Material: 304 or 303 or 316 Stainless Steel, brass Working pressure:0.3-35bar Thread:Male BSPT or NPT Flow rate:0.12- 4720 L/min Application:cleaning,cooling,lubrication,surface...

TCC Series Flat Fan Spray Jet Tips

fine fog particles, uniform atomization jet nozzles

Thread Size:1/8,1/4,3/8,1/2,3/4,1 male thread Spray Pattern:Flat fan Flow rate:0.16-410 L/Min Spray Angle:53-150 Degrees Customized Paint Color Working pressure:0.2-6bar...

PP Plastic Deflected Flat Fan Wide Angle Nozzles

Deflected Flat Fan Wide Angle Nozzles

Spray Characteristics ● Spray pattern: flat fan and straight jet ● Spray angles: optional 0, 15, 25, 40, 50, 65, 73, 80, 95, 110 ● Flow rates: optional 0.06 to 395 L/min @ 3bar ●Male thread: 1/4,3/4 BSPT or NPT; Material: Brass, SS, 316SS...

1/4 npt or bspt inch thread flat fan spray nozzle tips

Male thread: 1/4',3/4'' BSPT or NPT;

Design Features Male connections, 1/8 or3/8, BSPT or NPT; ● Spray pattern: flat fan and straight jet ● Spray angles: 0, 15, 25, 40, 50, 65, 73, 80, 95, 110 ● Flow rates: 0.06 to 395 L/min @ 3bar Material:Brass, SS, 316SS...

1/2 inch thread flat fan tips 1/2’ npt or bspt fan spray nozzles

Male connections, 1/2”, BSPT or NPT;

Design Features Male connections:1/8 or3/8, BSPT or NPT; ● Spray pattern: flat fan and straight jet ● Spray angles: 0to 110 ● Flow rates: 0.05 to 375 L/min @ 3bar Material:Brass, SS, 316SS...

1/8 inch flat fan nozzle npt or bspt 1/8” 3/8” thread connection fan nozzle t

Spray Characteristics ● Spray pattern: wide angle flat fan ● Spray angles: 60 to135degree ● Flow rates: 0.1to 335 L/min @ 3bar Liquid:Water, liquid, chemical, oil orothers Material: Stainless steel（301ss/304ss/316ss）, Brass, PP Connection:internal thread and external thread Thread :1/8, 1/4...

Deflector Flat Fan Spray Nozzles

Product characteristics Spray shape: fan-shaped spray/liquid column spray Spray Angle :0, 15, 20, 30, 40, 45, 50, 60, 80, 100, 120 Material: 316 SS Flow range :0.034L/min-48L/min...

Thin section low pressure fan nozzle

1/8, 1/4, 1/2, 3/4 bspt or npt

Spray Characteristics ● Spray pattern: flat fan ● Spray angles: 15, 25, 35, 40, 50 ● Flow rates: 3.9 to 79 L/min @ 3bar Thread :1/8, 1/4, 3/4, 1/2, 3/4, 1, 1-1/2, 2,3 inches and otherBSPT and NPTetc Ordering Information V - 3/8 - SS 4050 Material: SS, Brass Connection: internal thread and exter...

Narrow Spray Angle Type High Impact Flat Jet Nozzles

15°, 25°, 35°, 40°, 50°spray stainless steel 1/8, 1/4, 3/4bspt or npt

Flow range :0.034L/min-48L/min Conn. Thread:Male Thread 1/2bspt, NPT Spray Angle:0、15、20、30、40、45、50、60、80、100、120 Spray Pattern:Flat Fan ...

Self-cleaning Flat Fan Spray Nozzle

0.034L/min-48L/min 1/2′′ bspt or npt stainless steel fan nozzle

Spray Characteristics ● Pressurepattern:up to 200bar ● Spray pattern: flat fan and straight jet ● Spray angles: 0 to 65 ● Flow rates: 0.4 to 4.9 L/min @ 3bar Even-edge flat spray pattern ensures high impact. Thread Size :1/8 -2 BSPT or NPT Ordering Information:CCU 1/4- SS 6504 Material: Hard...

HCU Series High Impact Flat Spray Nozzles

1/8

Spray Characteristics ● Spray pattern: flat fan and straight jet ● Spray angles: 0, 15, 25, 40, 50, 65, 73, 80, 95, 110 ● Flow rates: 0.06 to 395 L/min @ 3bar ●Male connections, 1/8 to 2, BSPT or NPT; Ordering Information：CC 1/4- SS 6504 Material: Brass, SS, 316SS ...

Standard angle flat spray nozzles

50°, 65°,110° 1/8, 1/4, 1/2, 3/4 bspt or npt stainless steel flat fan spray tip

Design Features ● One-piece construction; ●V shape groove of the orifice to produce tapered flow distribution; ● No internal parts; ● Small to coarse droplets, low to medium impact ; ● Male connections, 1/8 or1/4, BSPT or NPT;...

Small Flow Rate Flat Fan Spray Nozzles

small to coarse droplets, low to medium impact 1/8, 1/4 bspt or npt

index
1
2
next
end

We manufacture and sell different types of nozzles with factory prices, high quality and fast delivery.
We can provide samples for you to test
Our business types: retail, wholesale, customized, OEM, etc.Welcome to consult.
For any kind of query, contact us like price,delivery,sizes,MOQ,Customized etc.

Get a Consult For Your Needs

We have a number of nozzle engineers with many years of experience, we can provide you with nozzle or spray system related expertise.
Are you interested in nozzle or spray system parameters, flow rate, pressure, orificket, connection components, thread size, etc.?
Or interested in application, sample test, installation, after-sales, service?
Or are you interested in price, delivery time, technical guidance?
All the relevant knowledge, our engineers will communicate with you.

About The Flat Fan Spray Nozzles

What is the flat fan spray nozzle?

Flat fan nozzle is a flat fan spray shape for the fan nozzle, its spray Angle in the range of 30-170 degrees to choose. In fan-shaped spray form, the edge of spray shape is clearly defined, and the diversion plane processed by fine technology provides uniform spray shape.

The spray pattern of flat fan nozzle

Flat fan nozzle applications

Flat fan nozzles are used in almost every aspect of industrial manufacturing and can be used for cleaning, atomization, humidification, coating, dust control, and cooling etc.
1. Metal processing cleaning, spray coating, spray cooling, oil stains removal, electroplating line washing, agricultural products cleaning;
2. Food, steel, paper and other industries cleaning, spraying and cooling applications;
3. Printed circuit board cleaning, display, shadow and etching process, rain test, spray cooling, semiconductor cleaning, color tube glass shell cleaning, LCD glass cutting cleaning.
4. Daily use: cleaning machine, faucet, road cleaning, car washing, etc.
Flat fan nozzle applications

In fact, the application of flat fan nozzle is very extensive. Each industry has different requirements for the use of flat fan nozzles. For example, the flat fan nozzle on the cleaning machine in daily use and the flat fan nozzle on industrial equipment and the flat fan nozzle on agriculture have different requirements in design, size, use pressure and so on.
We are a professional nozzle manufacturer, we manufacture and sell different types of fan nozzle and different industry needs.
