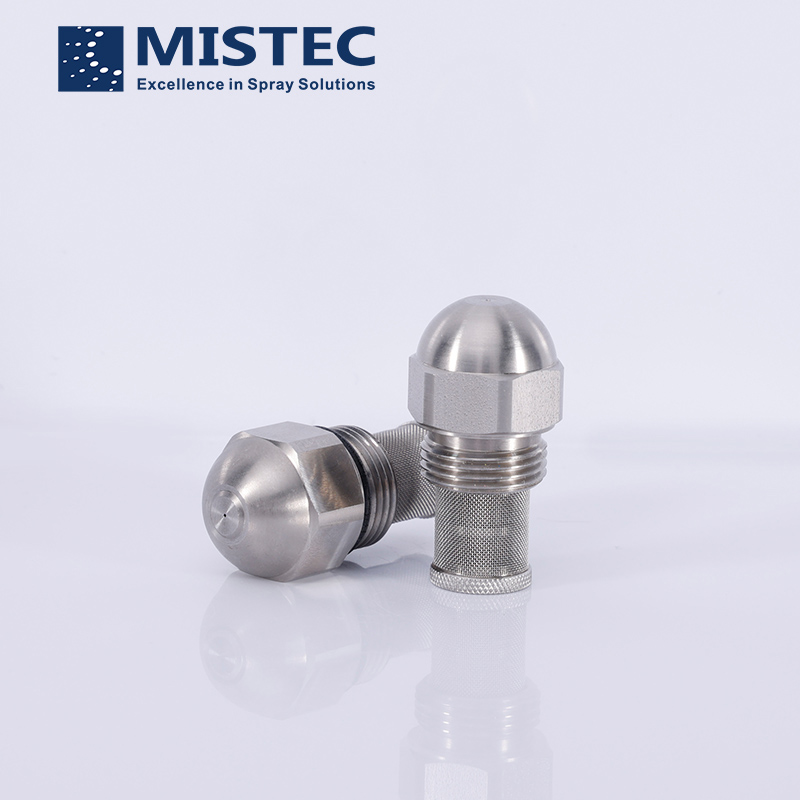

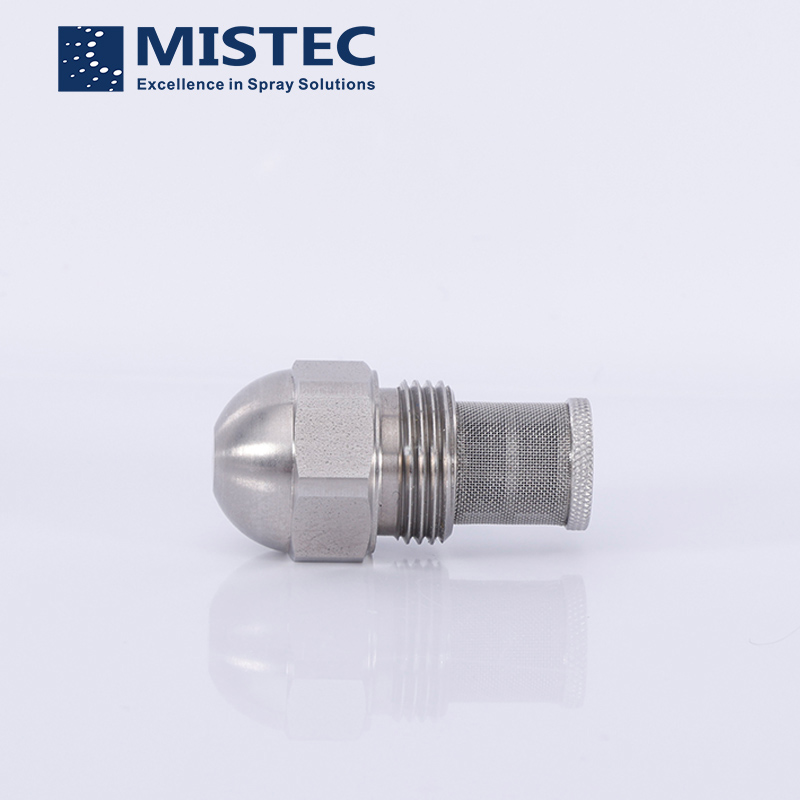

High and low pressure fine atomizing nozzle. When the liquid is medium at 2-10bar pressure and the pressure reaches 0-20bar, the atomized particle is about 50um, and 20bar can reach suspension fog. The higher the pressure, the better the atomization effect, the maximum pressure 10-80bar.



Spray Pattern
●Hollow cone

Spray angle
●80°

Flow rates
●0.55 gpm-2.85 gpm

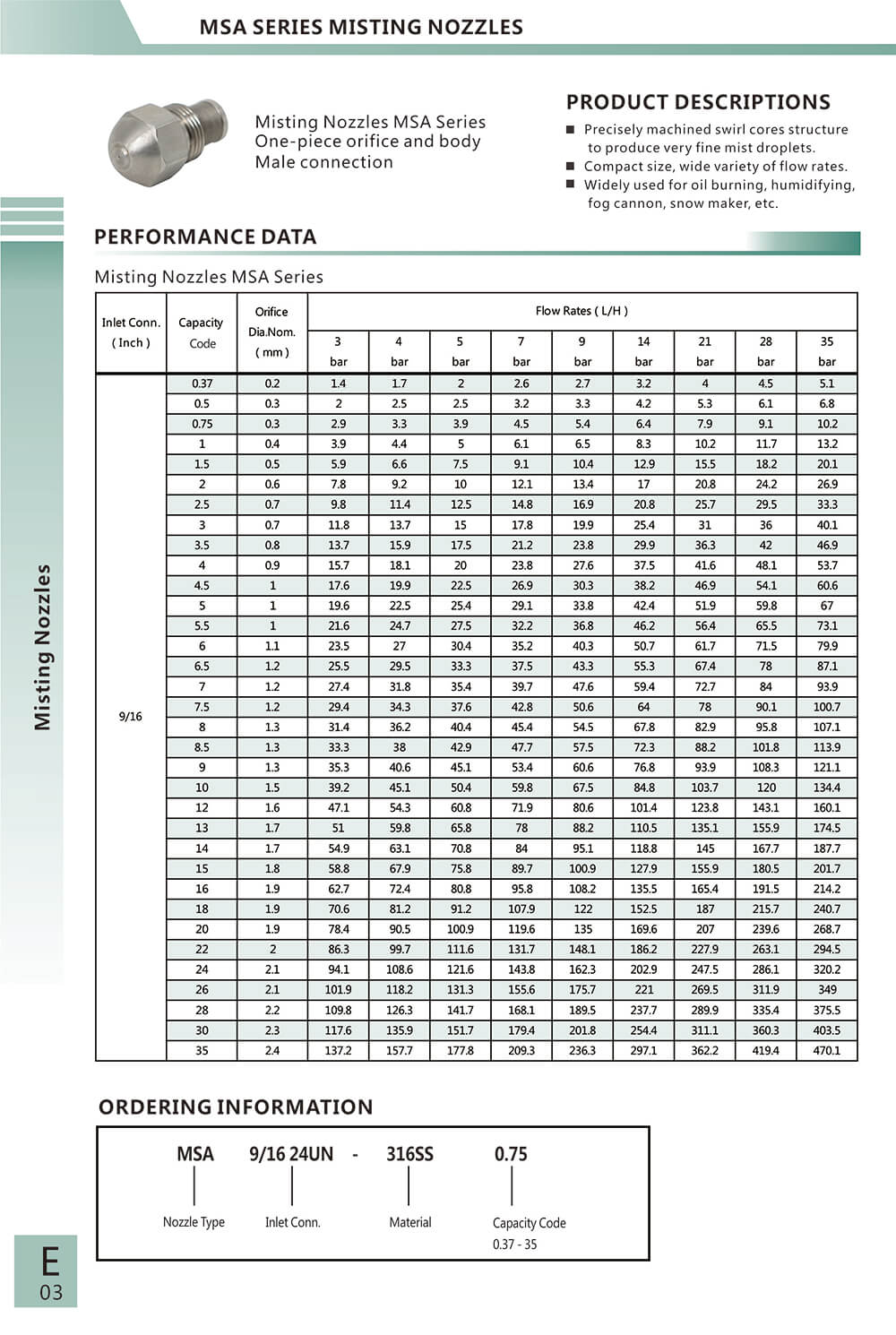

Ordering Information:MSA 9/16 24UN-316SS 0.75
Thread Size：1/8" BSPT, 1/4" BSPT, 3/4" BSPT, 1/2" BSPT, 1" BSPT, 9-16 24UN
Orifice Diameter：0-0.5 mm, 0.5-1 mm, 1-2 mm, 2-3 mm, 3-4 mm, 0.2-1.8 mm

Design Feature

All 316SS material, a long lifetime.
Good atomizing performance at low pressure.
SMD≈70microns at 100 psi.
Specially made for use in poultry incubators and hatchers.

Product performance


1. The atomizing nozzle is equipped with a stainless steel nozzle core and guide groove, forming a centrifugal vortex in the guide groove, and the spray shape is ring-type spray;

2. When the liquid in 2-10bar water pressure spray particles is medium, the pressure reaches 10-20bar atomized particles about 50um, 20bar above can reach suspension fog;

3. The jet hole is small, the introduction of american technology, the use of american precision drilling machine drilling, the aperture between 0.1mm-2mm, the main body is made of stainless steel finishing;

4. When 2-10kg/cm2 is also applicable under ordinary civil water pressure, the greater the pressure, the more ideal atomization effect, the maximum pressure can be 50-70bar, and the flow rate is calculated by L/min;

5. Generally 45-80 degrees several spray angle. Spray out in a circular mist. (Commonly used default Angle: 60-80 degrees) coverage is proportional to the distance;

6. The use of low cost, compared with the use of gas double fluid atomization, cost savings of more than 10 times, the use of thread connection, simple disassembly and installation;

7. Widely used in humidification and cooling, dust removal and cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and disinfection, and garden landscape fog.
