The low-pressure misting nozzle is mainly designed for the misting system, which can produce very fine misting droplets with a pressure of about 50-150 psi.

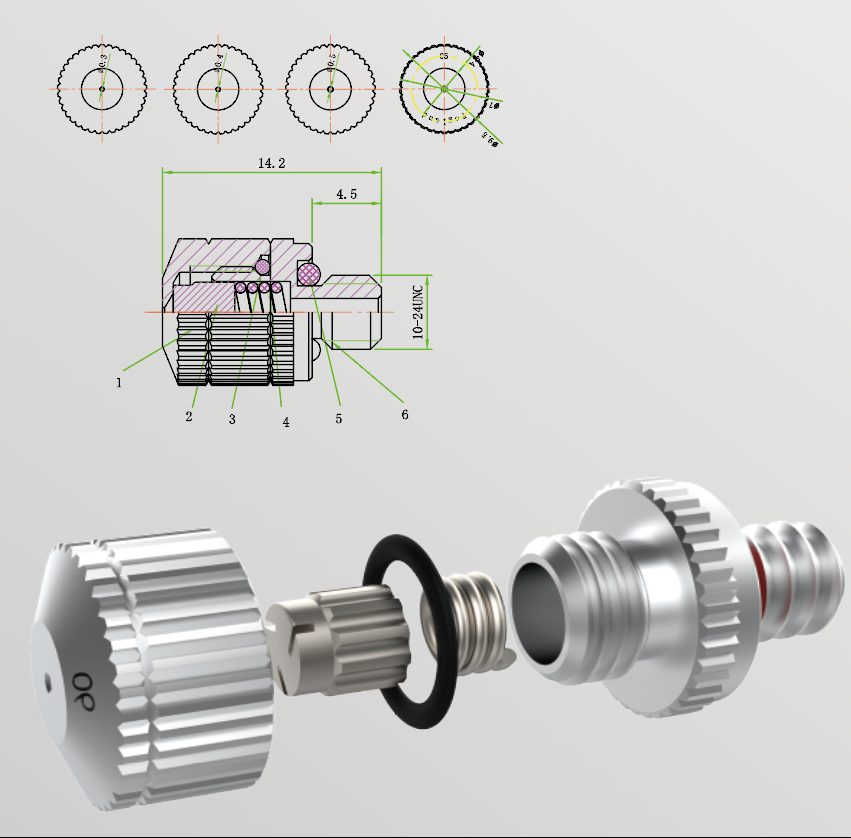

Misting droplets are less than 40 microns in size because of the unique atomization structure inside the low-pressure fog misting nozzle.

At the same time, this type of low-pressure fog nozzle is not easy to plug, corrosion resistance, wear resistance, and easy to clean.

Some orifice:

0.15mm(.006"),0.2mm(.008"),0 .3mm(.012"),0.4mm(.016"),0 .5mm(.020")orifice

Thread size:

1/4", 1/8",1/2", 3/8", etc Male and Female thread BSPT or NPT

Application of low pressure nozzle

1.Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tobacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test
15.Artificial fog
16.Humidify for other place

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.3	4	31.5	50	0.3	0.6
		5	34.0	55
		6	36.5	60	0.5	1.0
		7	39.5	65
		8	41.5	65
	0.4	4	39.5	60	0.5	0.8
		5	43.0	65
		6	47.5	65	0.6	0.9
		7	50.0	70
		8	53.5	75
	0.5	4	50.0	50	0.5	0.8
		5	60.9	55
		6	65.0	60	0.8	1.0
		7	73.0	60
	0.6	1	71.0	70
		2	93.0	80
		3	113.0	90
		4	128.5	90	0.7	1.1
		5	143.5	90
		6	155.0	90	0.9	1.4

Low pressure fog misting nozzle for misting system
