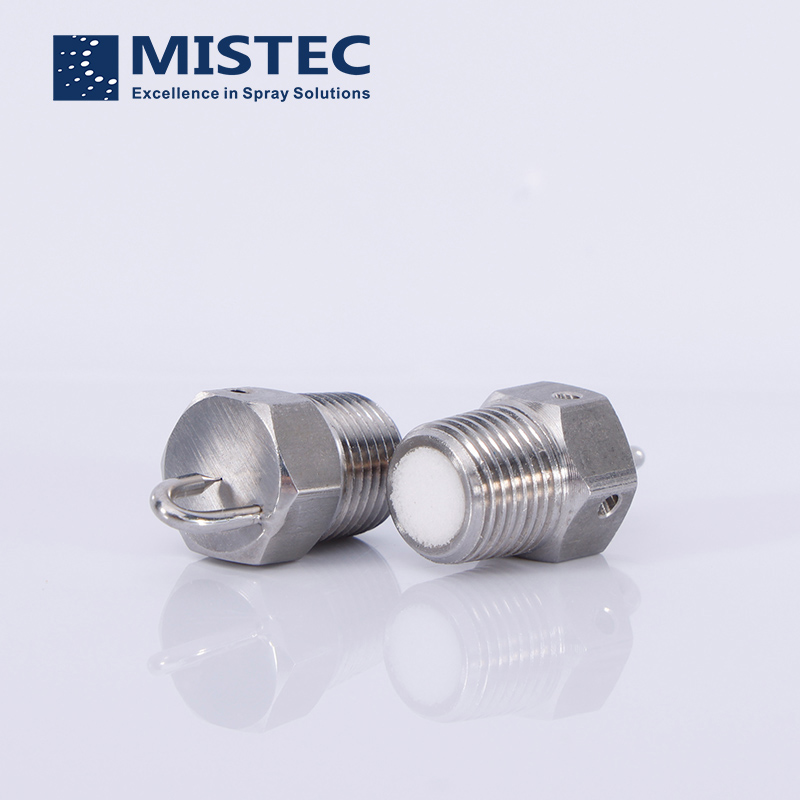

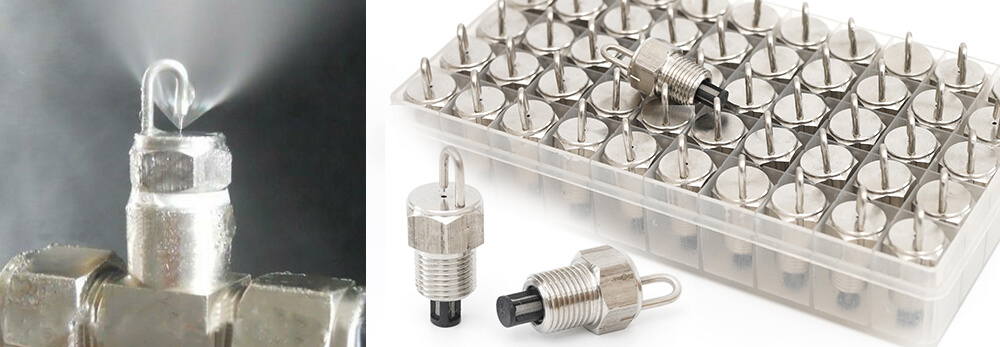

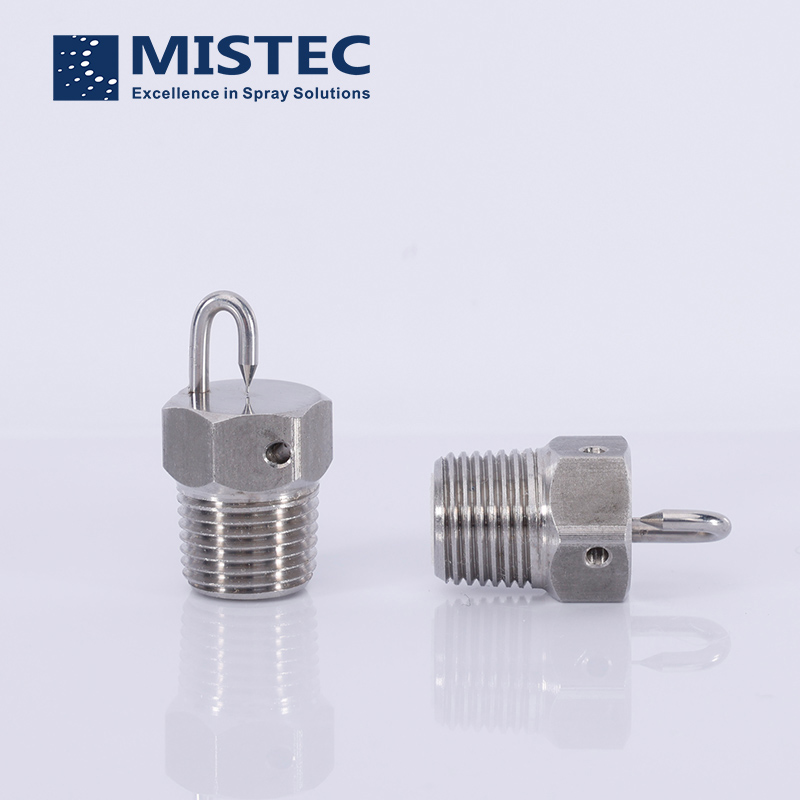

High Pressure Impingement Fogging Nozzle for Inlet Gas Cooling

Spray Characteristics
● Spray pattern: full cone plume fog
● Spray angles: 90°to 120°
● Operating pressure: 5- 80 bar
● Flow rate: 0.051 L/min- 0.560 L/min @70bar

Ordering Information:1/4-IPM15
Contact Us Info
We manufacture and sell different types of nozzles with factory prices, high quality and fast delivery.
We can provide samples for you to test
Our business types: retail, wholesale, customized, OEM, etc.Welcome to consult.
For any kind of query, contact us like price,delivery,sizes,MOQ,Customized etc.
  • Description

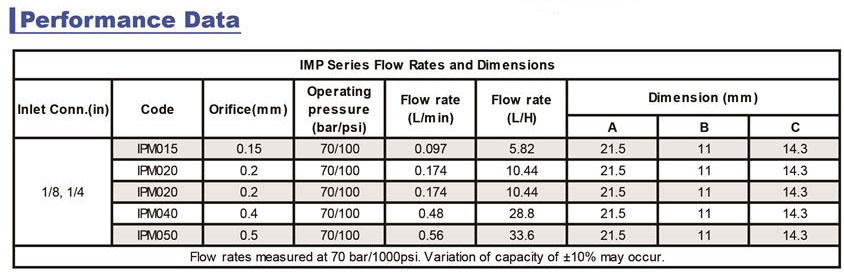

  • Nozzle parameter data
  • Quote Form
High Pressure Impingement Fogging Nozzle atomizing fine effect long stagnation time, fog volume scale, atomization effect is exquisite.
Buyers can choose their own nozzle according to their needs.


Spray Characteristics

● Spray pattern: full cone plume fog
● Spray angles: 90°to 120°
● Operating pressure: 5- 80 bar
● Flow rate: 0.051 L/min- 0.560 L/min @70bar

Ordering Information:1/4-IPM15

Design Feature

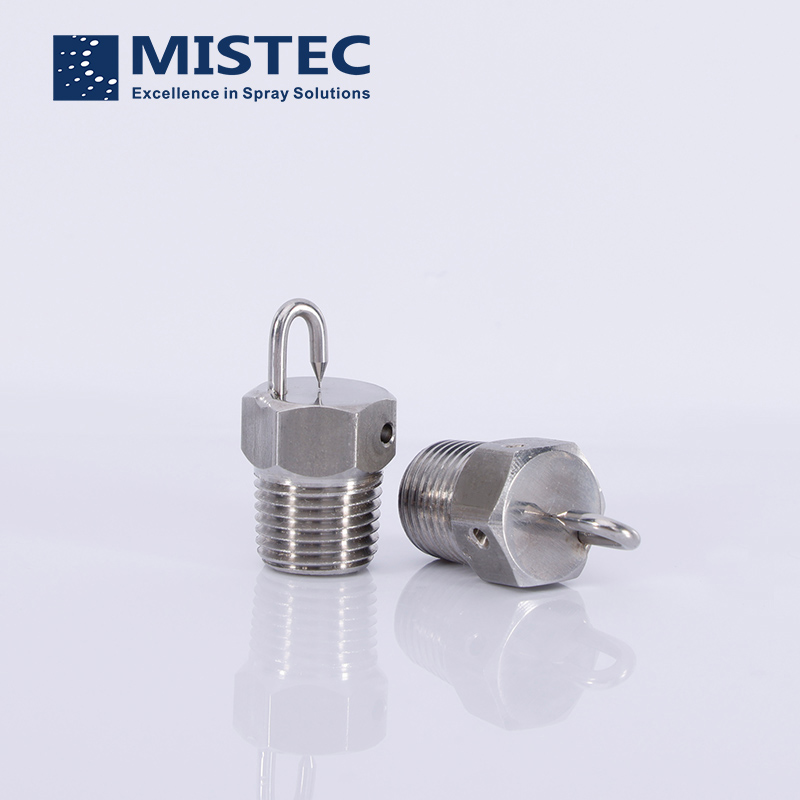

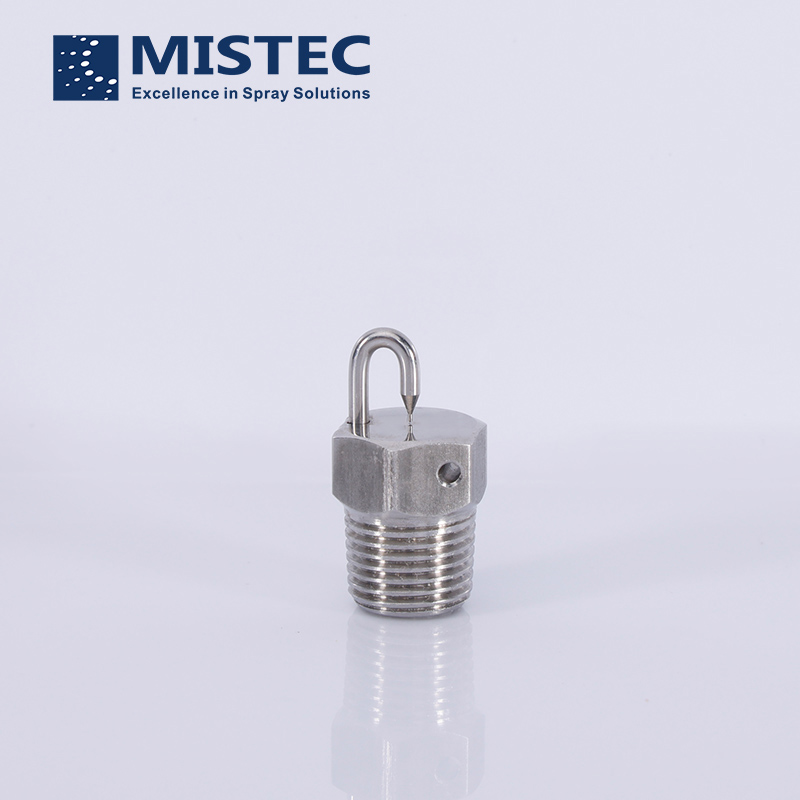

Impingement pin design extremely simple structure
No whirl vane or internal movable parts
Excellent atomizing quality (SMD<30 μm @70bar)
Highly dense critical mass fog with increasing pressure
Long service life, ruby orifice optional

Nozzle aperture :0.1mm 0.15mm 0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.7mm 0.8mm
Filter device :10μm filter cotton/can clean 10μm filter net
Atomizing particles: atomized particles in the air less than 50μm, in the air can reach the suspension state and then falling
Under high pressure, there will be residual alien organisms and impurities in the liquid, so it is necessary to install a pure water filter to achieve the class
Liquid requirements Under high pressure, there will be residual heteroorganisms and impurities in the liquid. It is necessary to install a pure water filter to achieve the purity similar to household drinking water before it can be introduced into the nozzle.


Note: This series of nozzles do not need air assistance, the system device is simple;
The spray point is fine, up to 3~7 microns
Full atomization, energy saving and water saving, low cost, good effect;
Nozzle is not easy to block, not easy to leak, internal rotary type
Automatic cleaning, spraying after advanced forging process, strong durability.



Common Applications

Fog making
Evaporative cooling Humidity conditioning
Moistening in air control chamber
Spray cooling
Misting
