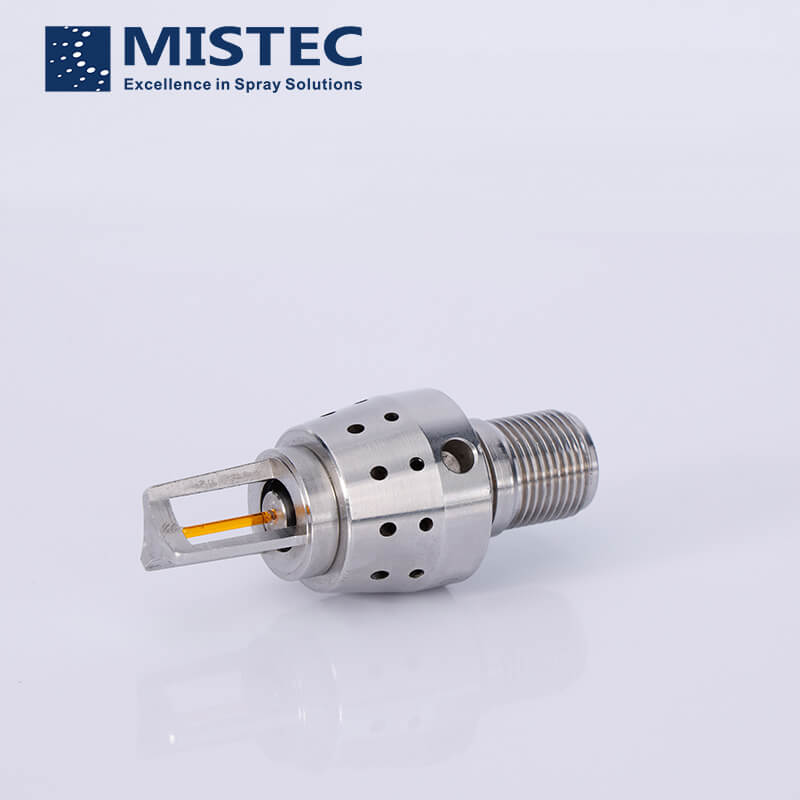

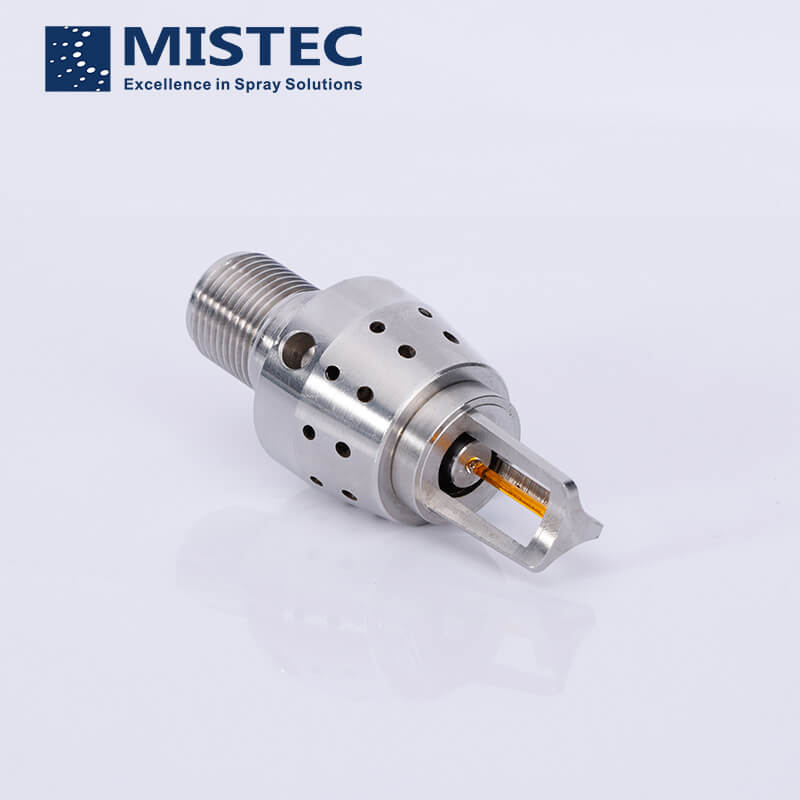

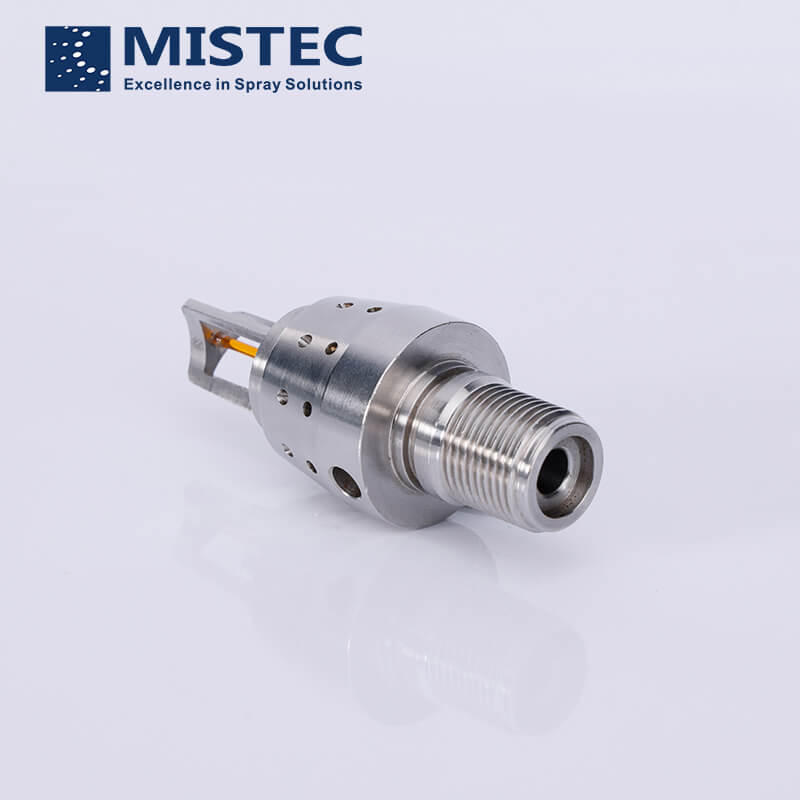

Jet Type High Pressure Water Mist Nozzles With Glass Bulb- Close Type

Spray Characteristics
● Spray pattern: Full Cone
● Spay angles: 120°(other angles optional)
● Operating pressure: 8~14MPa
● K-factors: 0.3, 0.5, 0.7, 0.9, 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5. Nozzles with other K factors can be customized.
● Material available: 304SS, 316SS, Brass (Chrome plated)
● Strainer: 40 mesh, 120 mesh, 200 mesh
● Class I water mist: Dv0.99<100μ
Contact Us Info
We manufacture and sell different types of nozzles with factory prices, high quality and fast delivery.
We can provide samples for you to test
Our business types: retail, wholesale, customized, OEM, etc.Welcome to consult.
For any kind of query, contact us like price,delivery,sizes,MOQ,Customized etc.
  • Description
  • Nozzle parameter data
  • Quote Form

Straight Hole Jet Structure Fine Water Atomizing Nozzle For Fire Fighting Protection

High pressure water mist nozzle is mainly used for fire extinguishing system. The nozzle assembly consists of a nozzle body and seven removable nozzles Each nozzle has an inner core or blade, which is easy to remove and clean The water mist nozzle covers a wide range and sprays evenly The small flow resistance loss makes it more water-saving in the same flow nozzle It is mainly used for library fire fighting, archives fire fighting and ship fire fighting system Water mist fire extinguishing system has the advantages of excellent fire extinguishing performance, less water pollution and green environmental protection.

Product advantages

1. The water mist nozzle has a wider flow coefficient under the same interface
2. The main body and nozzle are combined, which is easier to check and maintain
3. the spray coverage is 7 times that of other nozzles, and it can spray to every dead angle.
4. The water mist nozzle is divided into three types: low pressure, medium and low pressure and high pressure, which can meet the requirements of equipment in each place


The high-pressure water mist open sprinkler is an important component of the high-pressure water mist sprinkler system. It can not only cool the fire plume through small droplets and isolate oxygen from water vapor, but also reduce the radiant heat to control and extinguish the fire. It is usually installed in production places, warehouses, shopping malls, hotels, hospitals, theatres, office buildings, high-rise buildings, garages and other places with fire risk. The nozzle shall be sagged or installed horizontally, with two forms: open nozzle and closed nozzle
