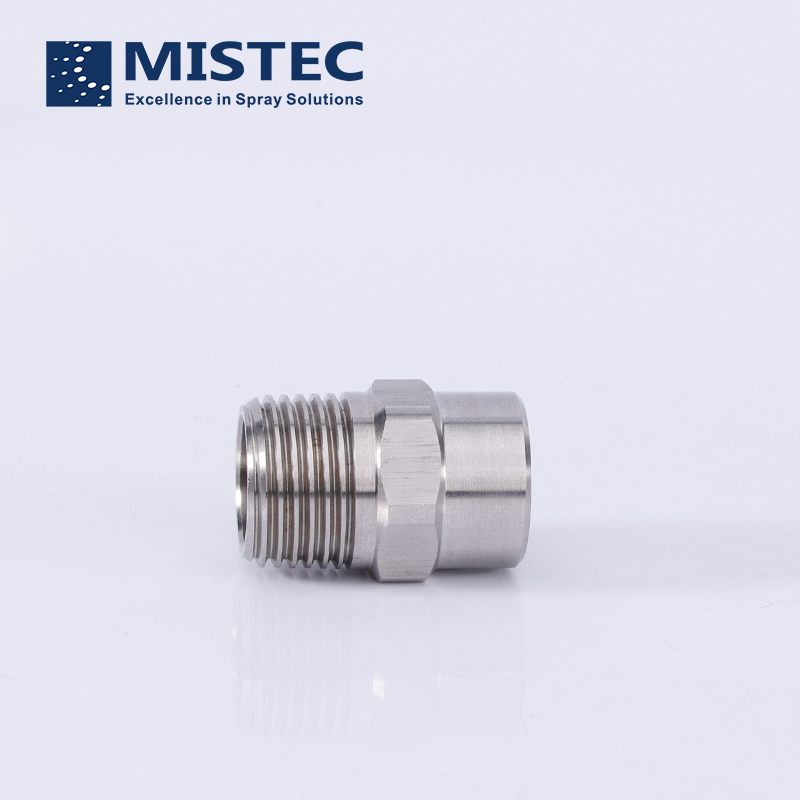

Full Cone Nozzle with Wide Angle Round Spray Pattern

Wide Angle solid cone nozzle adopts wide Angle circular spray form design, spraying Angle 120°to 125° can cover more area.Our wide Angle solid cone nozzle not only has a large spray Angle, but also has a stable spray shape and low measurement error.Our wide Angle solid cone nozzle has different specifications, suitable for different high and low pressure and different flow rate requirements.

Spray Characteristics
●Spray pattern: Full cone round spray pattern
●Spray angles: 120°to 125°
●Flow rates: 2 to 36 L/mim @3bar
●Midium to coarse droplet size

Ordering Information：BB-W 1/4 – SS 10W ；BB-H 1/4 – SS 10W
Material: SS, 316SS, Brass
Installation: external thread connection
Optional specifications :1/8 ", 1/4 ", 3/8 ", 1/2 ", 3/4 ", 1 ", 1-1/4 ", 2" etc

Design Features

Wide spray angle design for larger coverage
X type vane in nozzle body as a deflector
Midium to coarse droplet size
Suitable for applications requiring complete coverage
Male connection, 1/8” to 1/2”, BSPT or NPT

Application scope

Solid cone nozzle is widely used in surface treatment, waste gas treatment, fire prevention, fire suppression, desulfurization, defoaming, spraying applications, to improve product quality and
Productivity plays an extremely important role.

Applicable industry:
Electronics, chemical industry, environmental protection, steel, machinery, coating, electroplating, textile, automobile, paper making, medicine, food and other industrial production fields
