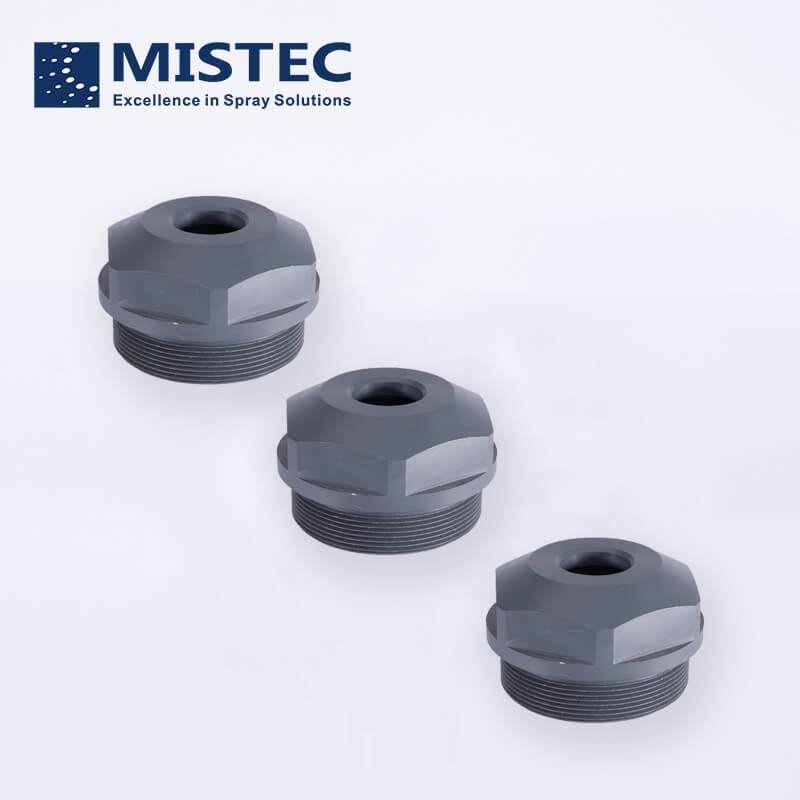

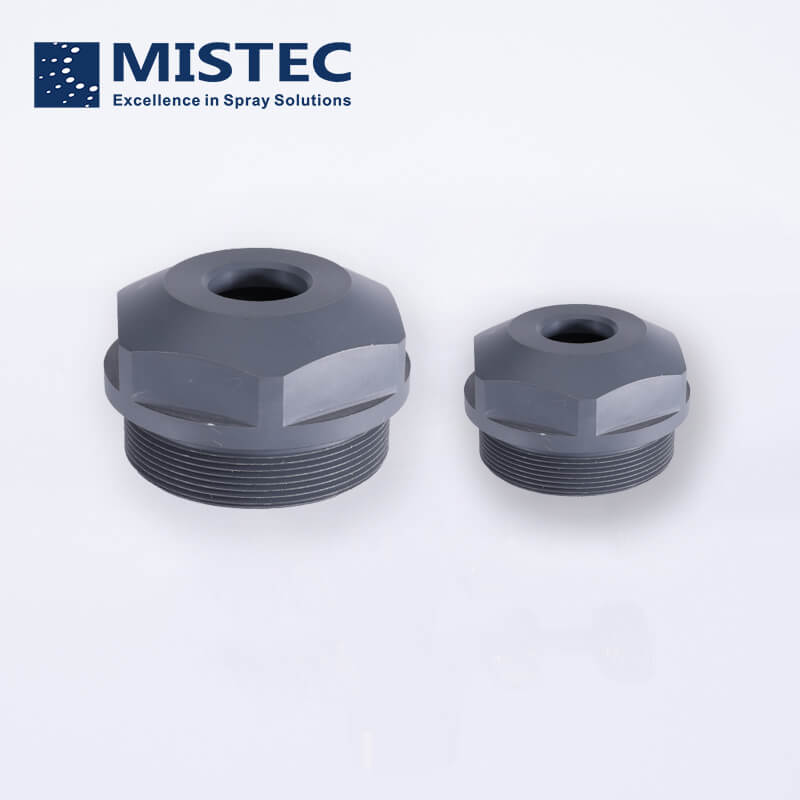

Bbs Series Short Type Full Cone Spray Nozzles

Material:PVC PP
Spray Pattern:Full Cone
Working Pressure:0.6-10bar
Thread size:1/4"
spray angle:90-120 degrees
capacity size:30L/min at 0.7bar
Contact Us Info
We manufacture and sell different types of nozzles with factory prices, high quality and fast delivery.
We can provide samples for you to test
Our business types: retail, wholesale, customized, OEM, etc.Welcome to consult.
For any kind of query, contact us like price,delivery,sizes,MOQ,Customized etc.
  • Description
  • Nozzle parameter data
  • Quote Form

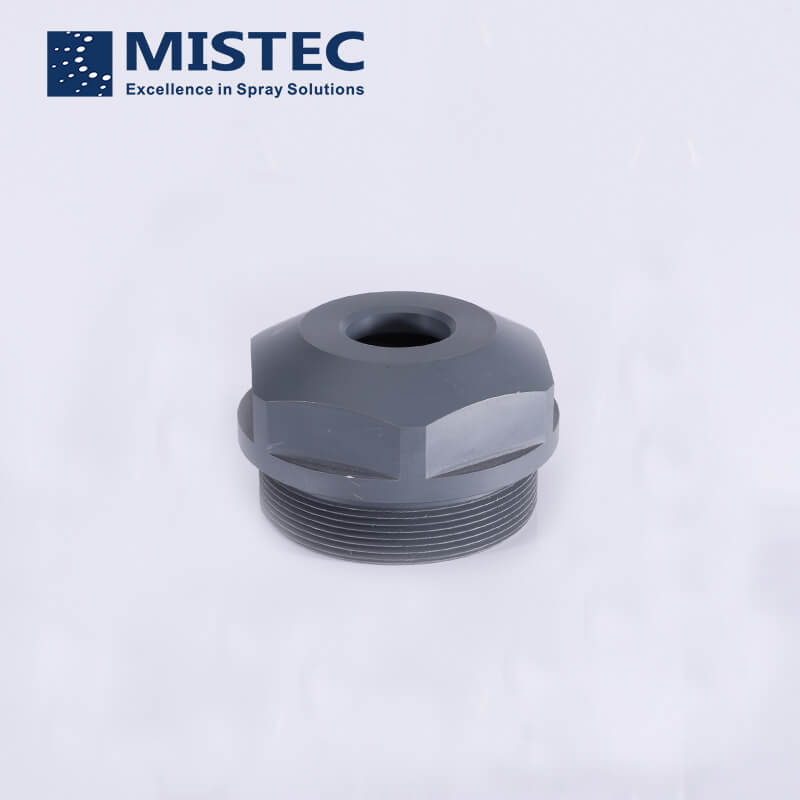

PVC Material Full Cone Nozzle


Material:PVC PP
Spray Pattern:Full Cone
Working Pressure:0.6-10bar

Plastic full cone nozzle produces uniformly distributed water droplets of medium to large size under a wide range of flow and pressure. Its uniform spray distribution originates from unique vein design, large and easy flow channel and excellent spray control design.

Flow Table for View:

Conn.
BSPT
NPT
flow
code
order
NO.
orifice
dia.
(mm)
Flow Rates(l/min. )
1
bar
2
bar
3
bar
4
bar
5
bar
6
bar
7
bar
10
bar
1/8'' 1B 0.79  0.54  62.0  0.7  0.9  0.9  1.0  1.1  1.30
1.5B 1.2  0.81  0.93 1.1  1.3  1.4  1.5  1.7  1.9
2B 1.2  1.1  1.2  1.5  1.7  1.9  2.0  2.2  2.6
3B 1.5  1.6  1.9  2.2  2.5  2.8  3.1  3.3  3.9
3.5B 1.6  1.9  2.2  2.6  3.0  3.3  3.6  3.9  4.5
3.9B 2.0  2.1  2.4 2.9  3.3 3.7 4 4.3 5.1
5B 2.0  2.7  3.1 3.7 4.2 4.7 5.1 5.5 6.5
6.1B 2.3  3.3  3.8 4.5 5.2 5.7 6.2 6.7 7.9
1/4'' 6.5B 2.38  3.5  4 4.8 5.5 6.1 6.7 7.1 8.4
10B 3.18  5.4  6.2 7.4 8.5 9.4 10.2 11 13.0
12.5B 3.20  6.8  7.7 9.3 10.6 11.8 12.8 13.7 16.2
3/8'' 9.5B 2.6  5.1  5.9 7.1 8.1 8.9 9.7 10.4 12.3
15B 3.6  8.1  9.3 11.2 12.7  14.1 15.4 16.5 19.4
20B 4.0  10.8  12.4 14.9  17.0  18.8 20 22 26.0
22B 4.5  11.9  13.6  16.4  18.7  21 23 24 28.0
1/2'' 16B 3.5  8.7  9.9  11.9  13.6  15.1  16.4  17.6  21.0
25B 4.6  13.5  15.4  18.6  21.0  24.0  26.0  27.0  32.0
32B 5.2  17.3  19.8  24  27  30  33  35  41
40B 6.2  22.0  25.0  30  34  38  41  44  52
50B 6.7  27.0  31.0  37  42  47  51  55  65
3/4'' 2.5B 4.9  15.9  18.2  22  25  28  30  32  38
4B 6.4  26.0  29.0  35  40  44  48  52  61
7B 9.5  45.0  51.0  61  70  78  84  91  107


Conn.
BSPT
NPT
flow
code
order
NO.
orifice
dia.
(mm)
Flow Rates(l/min. )
1
bar
2
bar
3
bar
4
bar
5
bar
6
bar
7
bar
10
bar
1/8'' 1B 0.79  0.54  62.0  0.7  0.9  0.9  1.0  1.1  1.30
1.5B 1.2  0.81  0.93 1.1  1.3  1.4  1.5  1.7  1.9
2B 1.2  1.1  1.2  1.5  1.7  1.9  2.0  2.2  2.6
3B 1.5  1.6  1.9  2.2  2.5  2.8  3.1  3.3  3.9
3.5B 1.6  1.9  2.2  2.6  3.0  3.3  3.6  3.9  4.5
3.9B 2.0  2.1  2.4 2.9  3.3 3.7 4 4.3 5.1
5B 2.0  2.7  3.1 3.7 4.2 4.7 5.1 5.5 6.5
6.1B 2.3  3.3  3.8 4.5 5.2 5.7 6.2 6.7 7.9
1/4'' 6.5B 2.38  3.5  4 4.8 5.5 6.1 6.7 7.1 8.4
10B 3.18  5.4  6.2 7.4 8.5 9.4 10.2 11 13.0
12.5B 3.20  6.8  7.7 9.3 10.6 11.8 12.8 13.7 16.2
3/8'' 9.5B 2.6  5.1  5.9 7.1 8.1 8.9 9.7 10.4 12.3
15B 3.6  8.1  9.3 11.2 12.7  14.1 15.4 16.5 19.4
20B 4.0  10.8  12.4 14.9  17.0  18.8 20 22 26.0
22B 4.5  11.9  13.6  16.4  18.7  21 23 24 28.0
1/2'' 16B 3.5  8.7  9.9  11.9  13.6  15.1  16.4  17.6  21.0
25B 4.6  13.5  15.4  18.6  21.0  24.0  26.0  27.0  32.0
32B 5.2  17.3  19.8  24  27  30  33  35  41
40B 6.2  22.0  25.0  30  34  38  41  44  52
50B 6.7  27.0  31.0  37  42  47  51  55  65
3/4'' 2.5B 4.9  15.9  18.2  22  25  28  30  32  38
4B 6.4  26.0  29.0  35  40  44  48  52  61
7B 9.5  45.0  51.0  61  70  78  84  91  107
