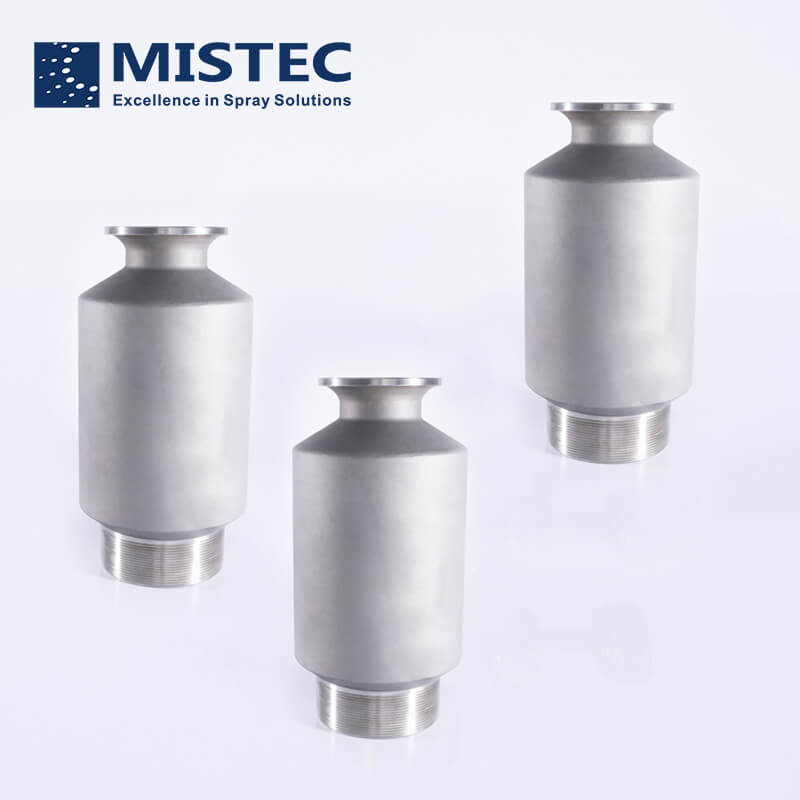

Desulphurization nozzle large flow solid cone nozzle

The design of large flow solid cone nozzle adopts integral structure, two internal S-shaped blades form the maximum unblocked diameter, and is cast with the nozzle body. The advantages of this structure are: under the same flow, the diameter of solid particles allowed by the large flow solid cone nozzle is 3 times higher than that of the common solid cone nozzle. The unique design maximizes the problem of common nozzle clogging under bad working conditions, especially suitable for spraying slurry with large flow containing more particles and impurities, and easy to transport muddy and lumpy liquid, such as lime slurry. Low pressure to 0.2 bar can effectively spray. The internal channels are linear, so that the liquid through more smooth, no dead Angle, no blockage, effectively reduce the liquid atomization pressure. The flow diversion effect of S-shaped blade avoids the layered spraying of spiral nozzle, making spraying more uniform and comprehensive. Internal or external thread connections, from 3/8 "to 4", flange connections are also available.
Internal or external thread connections, from 3/8 "to 4", flange connections are also available
Materials available: brass, 303 stainless steel, 316L stainless steel, Teflon (PTFE) and PP.
Spray Angle: 30°, 60°, 90° and 120°.
Flow can range from 2.45 L/min to 3400 L/min,


Product use
Desulphurization nozzle large flow solid cone nozzle suitable for chemical, petroleum, power station and environmental protection industry fume washing, dust removal, cooling, spraying, etc
