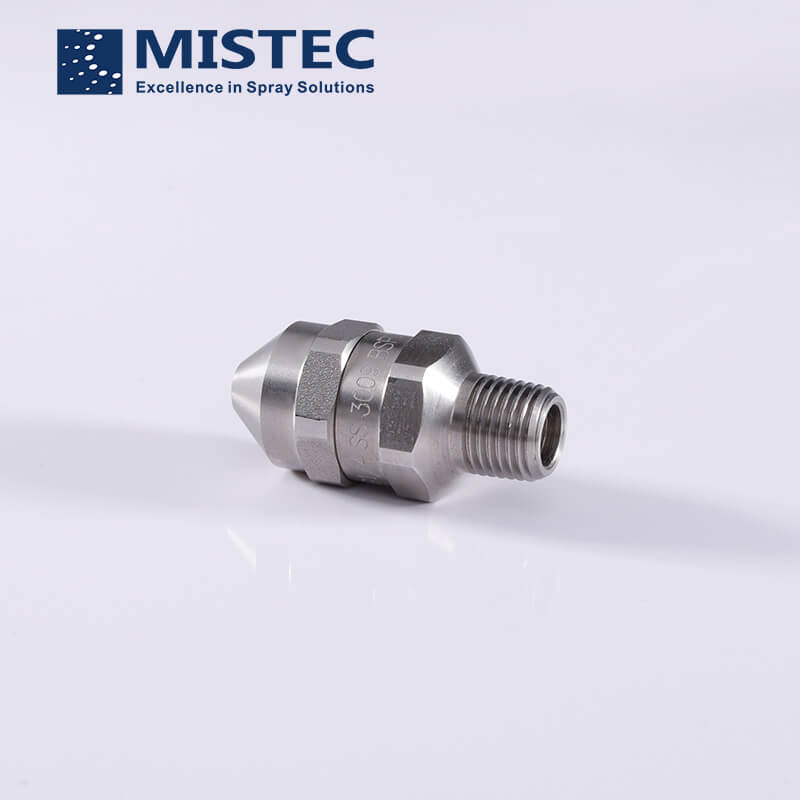

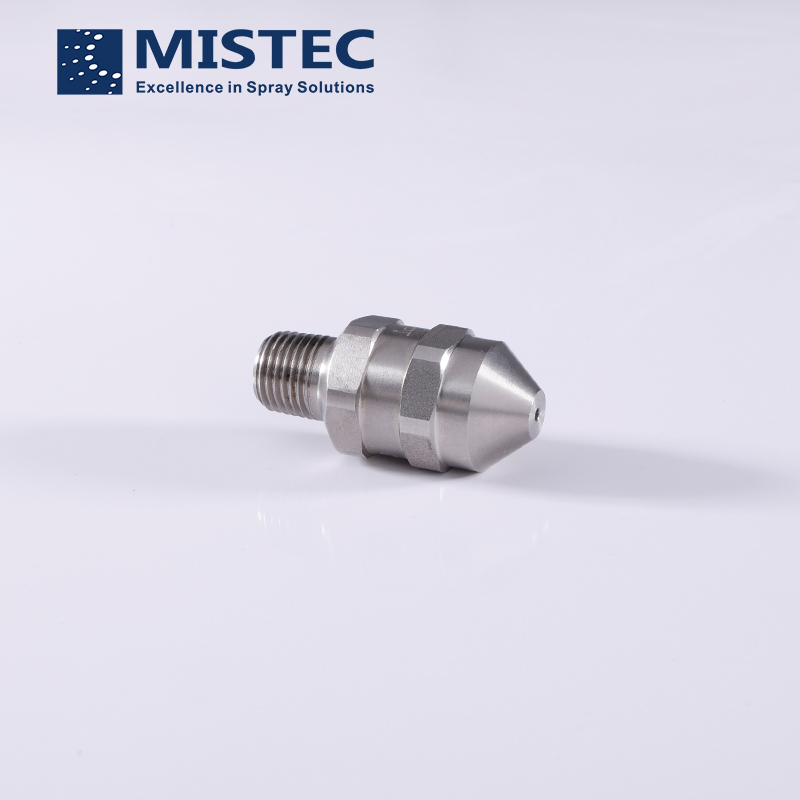

Solid full cone nozzle with narrow Angle of 15° can produce solid conical spray shape, the spray area is round, and the narrow Angle of spray is 15°.The spray is evenly distributed and the particles are moderate. The impact force per unit area is significantly higher than that of the wider nozzle at the same flow rate. The 15° narrow nozzle has removable caps and blades.
Spray Characteristics
●Spray pattern: Full cone
●Spray angles: 15°
●Flow rates: 2.8 to 36 L/mim @3bar
●Midium to coarse droplet size, high impact
Ordering Information:GG15 1/8 – SS 1507
Material optional: SS, 316SS, Brass
Optional connection size
Inlet Conn.(Inch)
1/8；1/4；3/8；1/2；3/4；1；1-1/4；1-1/2；2；2-1/2；3 etc
Design Features
-
Full cone-shaped spray pattern with thin round impact area
-
Specially designed impeller vane make a good flow control
-
Suitable for applications require a complete spraying coverage
-
G version for one-piece nozzle , GG for two pieces nozzles
-
The removable caps and vanes of GG offer easy cleaning and replacement
-
Narrow Angle 15° full cone nozzle general application
■ Spray creates turbulence for deep penetration washing
■ Cool superheated steam
■ The inside of the jet pipe is cooled or cleaned
