Spray Characteristics
●Spray pattern: Full cone
●Spray angles: 30 degree
●Flow rates:0.55 to 19.7 L/mim @3bar
●Midium to coarse droplet size, high impact
Ordering Information:GG15 1/8 – SS 1507
Material optional: SS, 316SS, Brass
Spray Characteristics
●Spray pattern: Full cone
●Spray angles: 30 degree
●Flow rates:0.55 to 19.7 L/mim @3bar
●Midium to coarse droplet size, high impact
Ordering Information:GG15 1/8 – SS 1507
Material optional: SS, 316SS, Brass
Connection
BSPT, NPT
Optional thread size
1/8", 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 5", 6"
Features
Clog-resistance, easy-maintenance, corrosion-resiatance and temperature-resistanceCommon Application
Washing and rinsing processesCooling of coke, primary metals, and other materials
Breaking up and deaerating foam
Scrubbing, washing,and cooling of flue gases to remove fly ash and other products of combustion
Suppression of fugitive dust in the processing of bulk ores, coal,limestone, sand, and gravel
Fire suppresion and prevention
Dust control

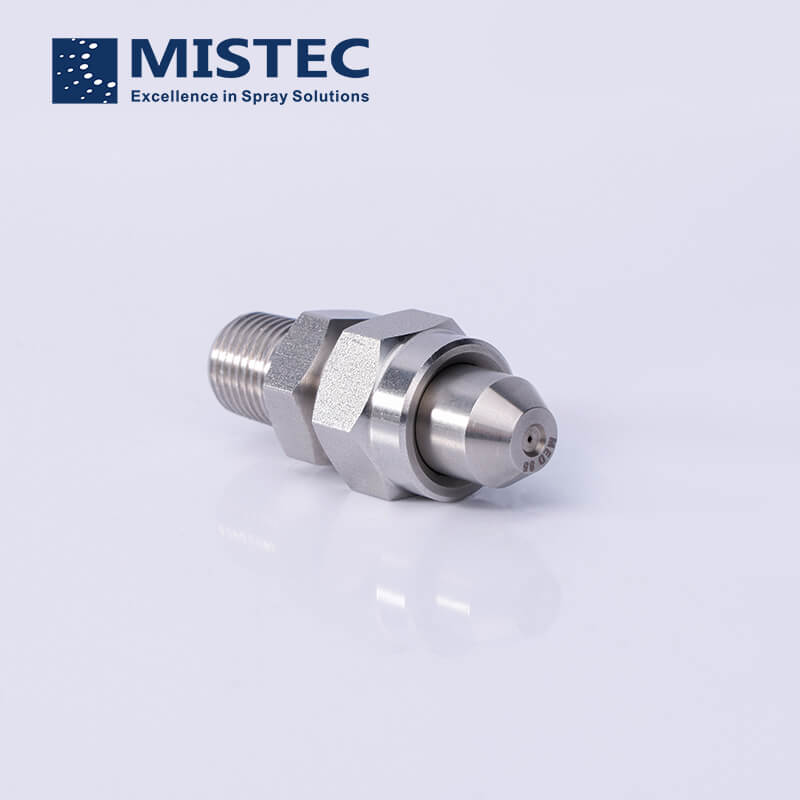

Narrow Spray 30 Degree Angle Full Cone Spray Nozzles
